Standard

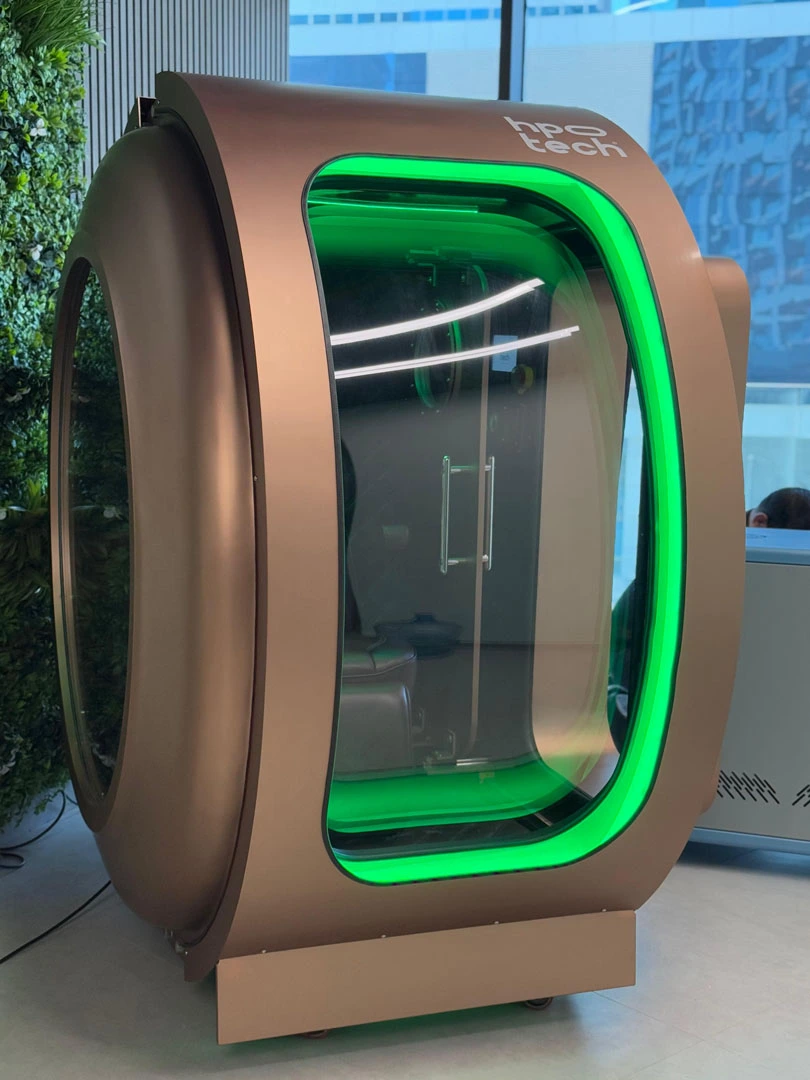

Panoramic window
Full-width cabin glazing for an open sight-line through the whole session. The single biggest reason buyers choose Zeugma over a porthole chamber.
HPOTech · Partner chamber
Zeugma
Premium monoplace with panoramic visibility.
Price on quote. Delivered & installed.
Book your consultation
What's inside
The sit-up premium.
Panoramic, not enclosed.
Zeugma is the flagship HPOTech monoplace: full-width window, BIBS oxygen as standard, and a sit-up cabin built for long, visible sessions.
Standard

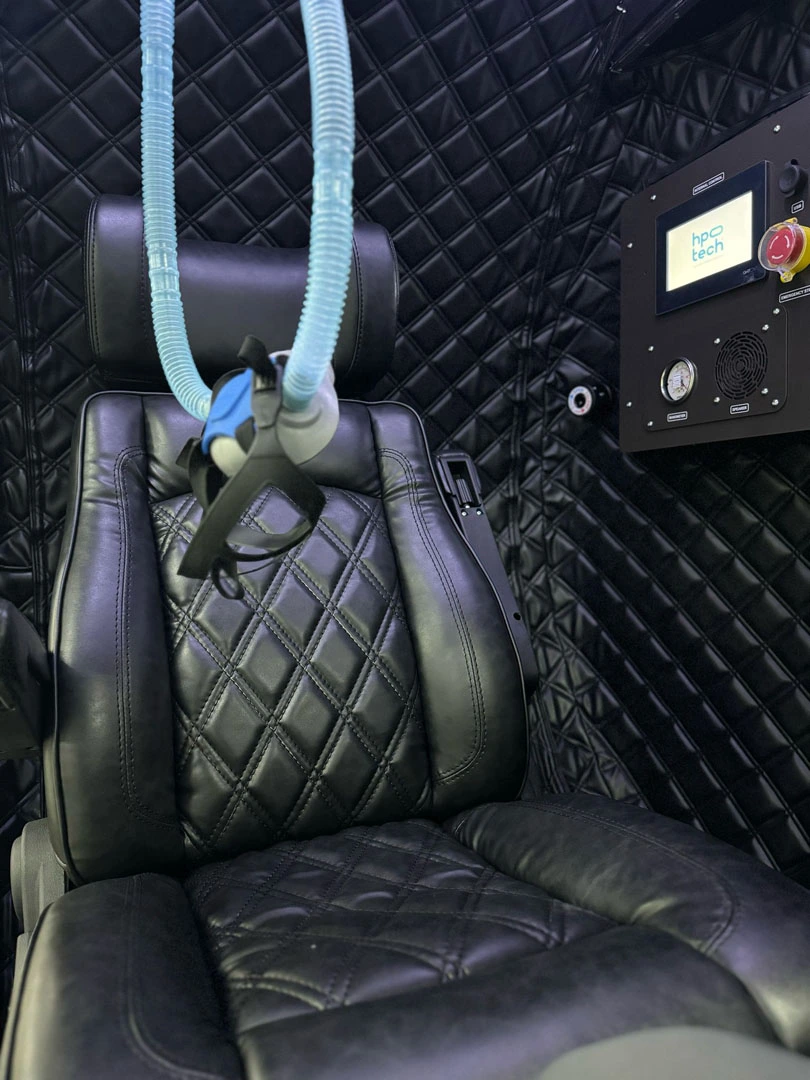

BIBS Advanced Oxygen
Built-in breathing system via mask, standard on every Zeugma build. The premium oxygen delivery standard, not a nasal cannula or loose flow.
Standard
Sit-up cabin
1.9 m³ internal volume. Sit upright through the full session: read, work, or rest without lying flat.
Standard

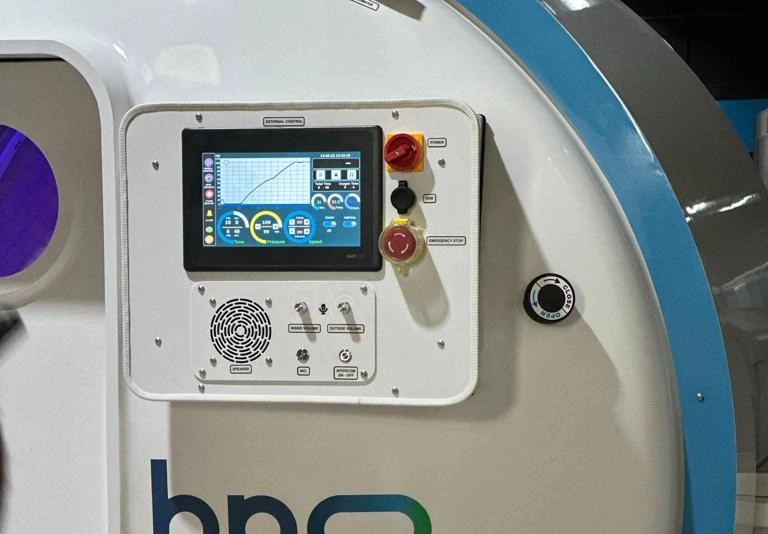

Automated pressure control
Digital ramp, dwell, and exit. Emergency depressurisation from 2.0 ATA to ambient in 90 seconds.
Upgrade
2.4 ATA: optional upgrade
Optional upgrade. Lifts the pressure ceiling from the standard 2.0 ATA build to the full 2.4 ATA range.
Specs snapshot
| Manufacturer | HPOTech |
| Pressure | 2.0 ATA · 2.4 ATA optional upgrade |
| Capacity | 1 person · sit-up |
| Oxygen System | Advanced Oxygen (BIBS mask), standard |
| Warranty | 2 years |
The full technical breakdown (dimensions, footprint, power, safety, certifications) sits below. Share the Technical details section with your electrician and installer ahead of delivery.
Technical details
Chamber, installation, & safety specifications.
Everything Zeugma needs on-site, plus the certification portfolio. Build-to-order configuration is locked during scoping; these are the baseline specs.
Chamber & Cabin
Chamber Cabin
- External Dimensions
- 1,344 × 1,987 × 1,858 mm (L × W × H)
- Internal Length
- 1,620 mm
- Internal Volume
- 1.9 m³
- Weight
- 400 kg
- Max Occupant Weight
- 225 kg
- Operating Pressure
- 2.0 ATA (1.0 bar) · 2.4 ATA optional upgrade
- Construction
- Aero-space aluminium, panoramic window
- Shape
- Cylindrical · 3 modules · 770 mm module length
Oxygen System
- Delivery
- BIBS mask system (standard)
- BIBS Supply Pressure
- 3.2 to 4.0 bar
- Additional O₂ Concentrator
- Configurable
Installation & Safety
Footprint & Environment
- Minimum Floor Space
- 5,500 × 2,800 mm
- Design Temperature
- 0 °C to 38 °C
- Lead Time
- Build-to-order, confirmed in scoping
Air Systems
- Air Pressurisation
- 3.45 to 7.2 bar
- Air Supply Flow
- 250 LPM
- Ventilation Rate
- 125 to 400 LPM
Safety Systems
- Emergency Depressurisation
- 2.0 → 1.0 ATA in 90 seconds
- Certifications
- ASME PVHO, MDR, ISO 13485, 20+ international standards
Build-to-order
Zeugma is European-manufactured to order. Final configuration (pressure tier, additional concentrator, window and interior options) is locked during scoping and reflected in your custom quote.

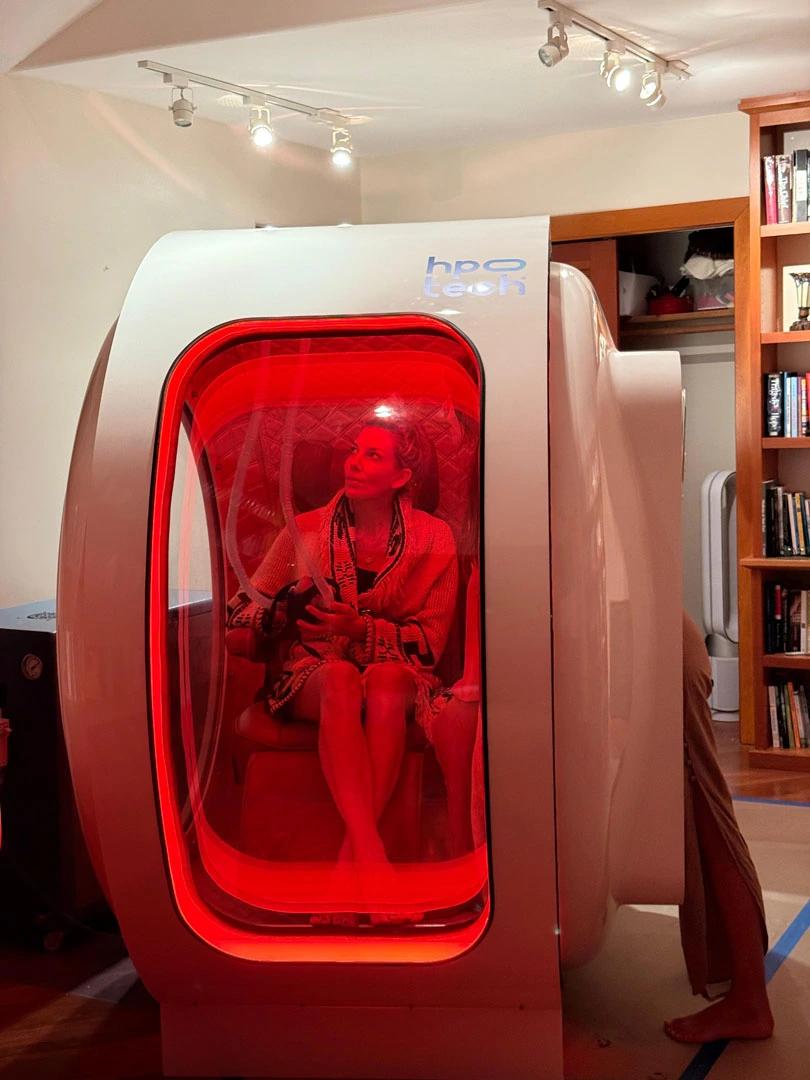

Installed in sections
Zeugma doesn't pass through a standard doorway. Its cylindrical cabin is delivered in three sections and assembled in a room of 5.5 × 2.8 m or larger.
Site measurement first
Before anything else, we measure your site: the footprint, the route in and the power. No surprises on delivery day.
A 15-minute call.
We'll confirm configuration, footprint, and delivery, then send final pricing.
