Standard

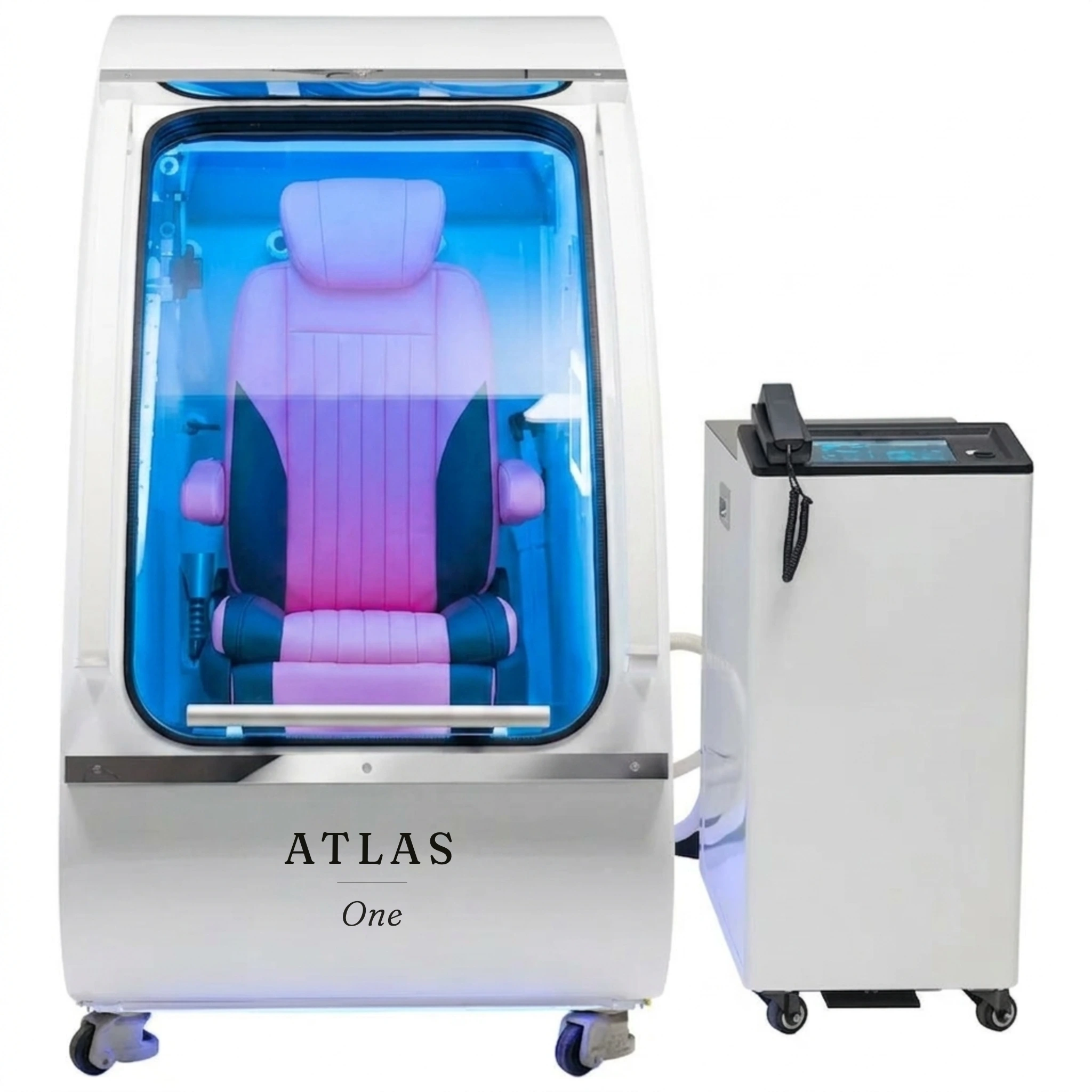

10.1″ touchscreen session runner
Every session runs the same way: pressure ramp, dwell, exit. No technical background required.
Hard-shell · Sit-up · One person

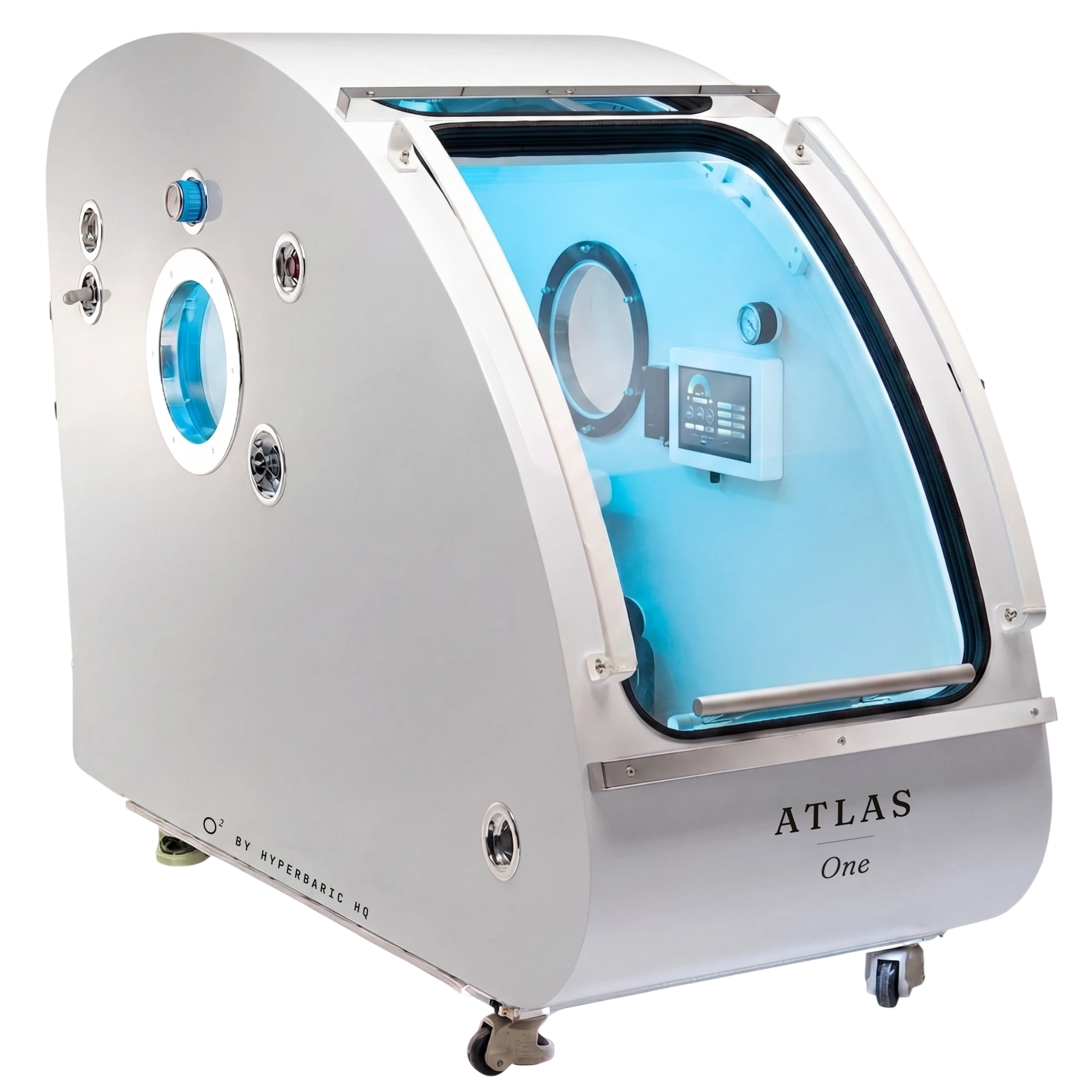

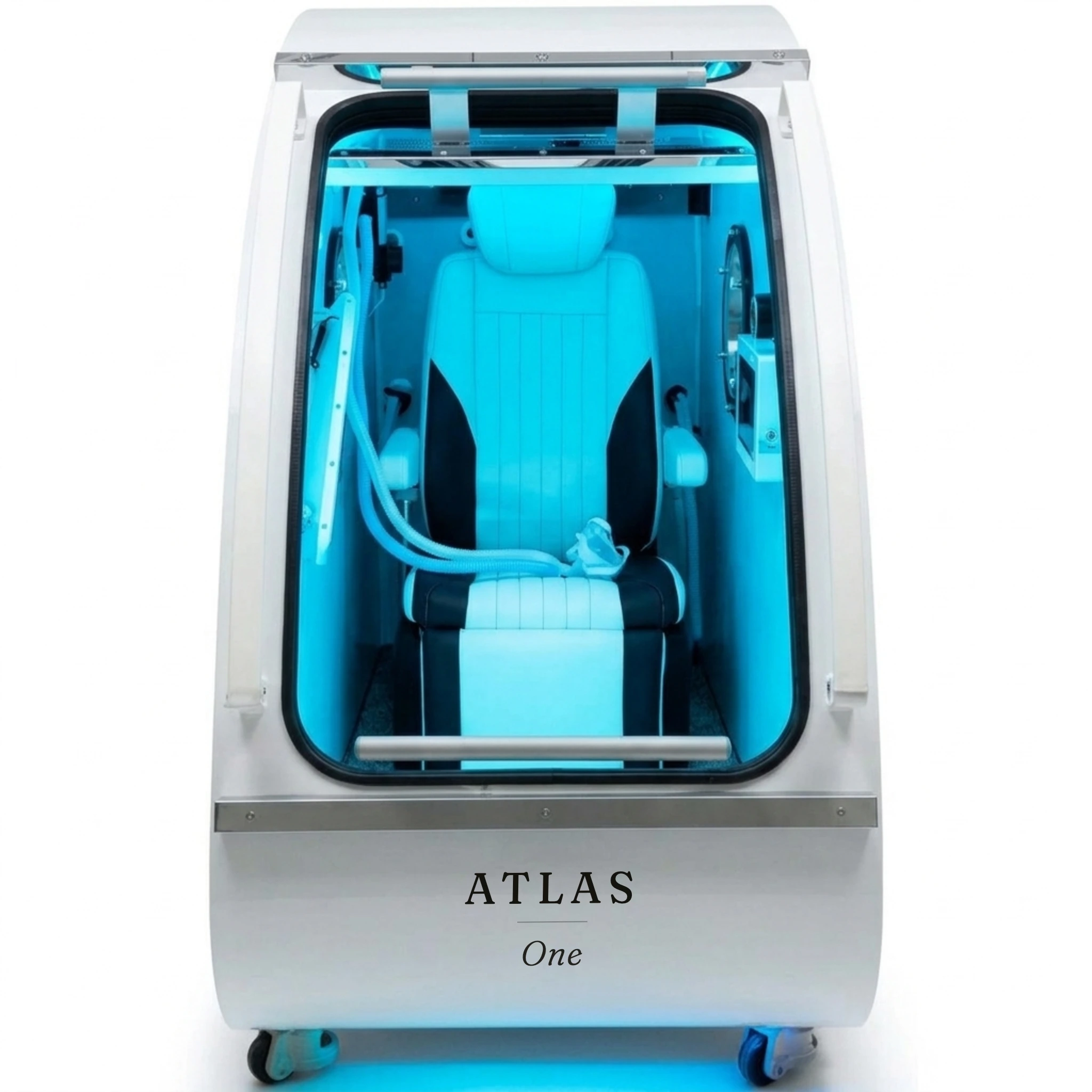

Atlas One
The hard-shell chamber built for the daily deposit.
Sealed-steel pressure in a luxury cabin made for the home. Standard Oxygen is made on board, and Advanced Oxygen can be specified when you order.
Hardware from AUD 78,900 — delivered & installed.
Choose your oxygen, seat and finish, then send the build with your quote request. Or book a 15-minute call, text, email or phone us.
- No tanks, no refills
- Oxygen is made on board
- ≈ 2.6 × 3.0 m
- Floor space, with clearances
- 1.7 m
- Minimum ceiling
- 2 × 10A
- Standard power points
- Up to 2.0 ATA
- In sealed steel
Walkthrough
See Atlas One in motion.

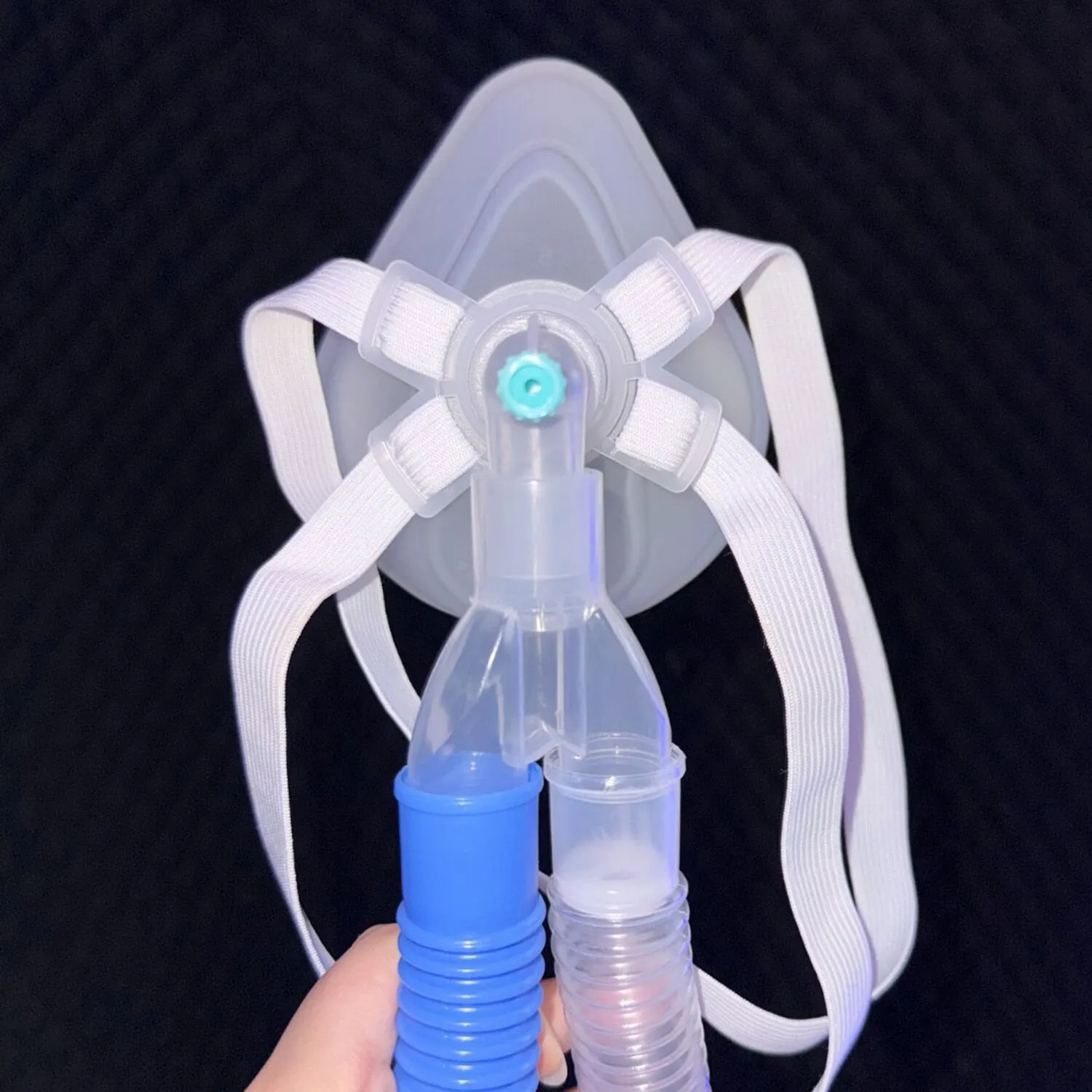

Advanced Oxygen
Step up to sealed-mask oxygen.

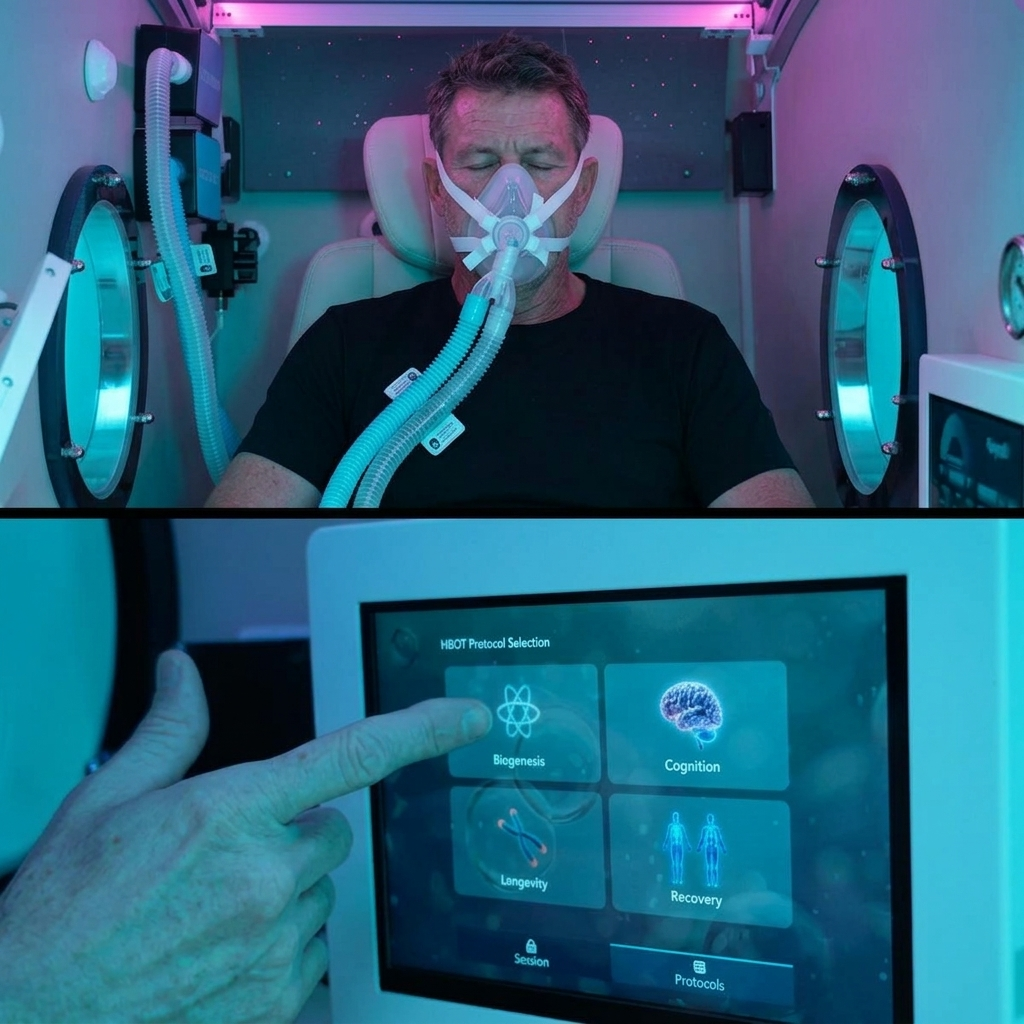

Atlas One ships with Standard Oxygen. Choose the Advanced Oxygen (BIBS) upgrade when you order and a built-in breathing system delivers inhale-activated, high-purity oxygen straight to a sealed mask, with exhalation routed out of the chamber.
BIBS · 95–98% O₂ · sealed mask
The chamber
Built to sit in a real room. Engineered to run every day.

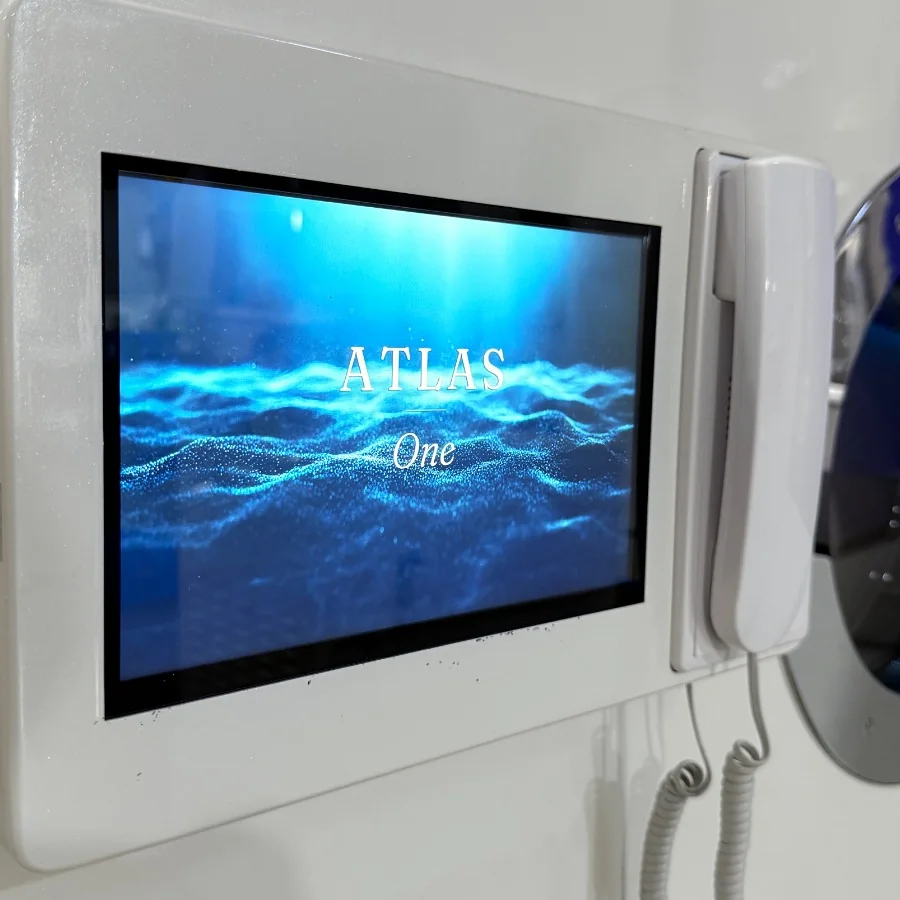

- Touchscreen
- Hard-shell pressure
- Climate control
- One-touch protocols

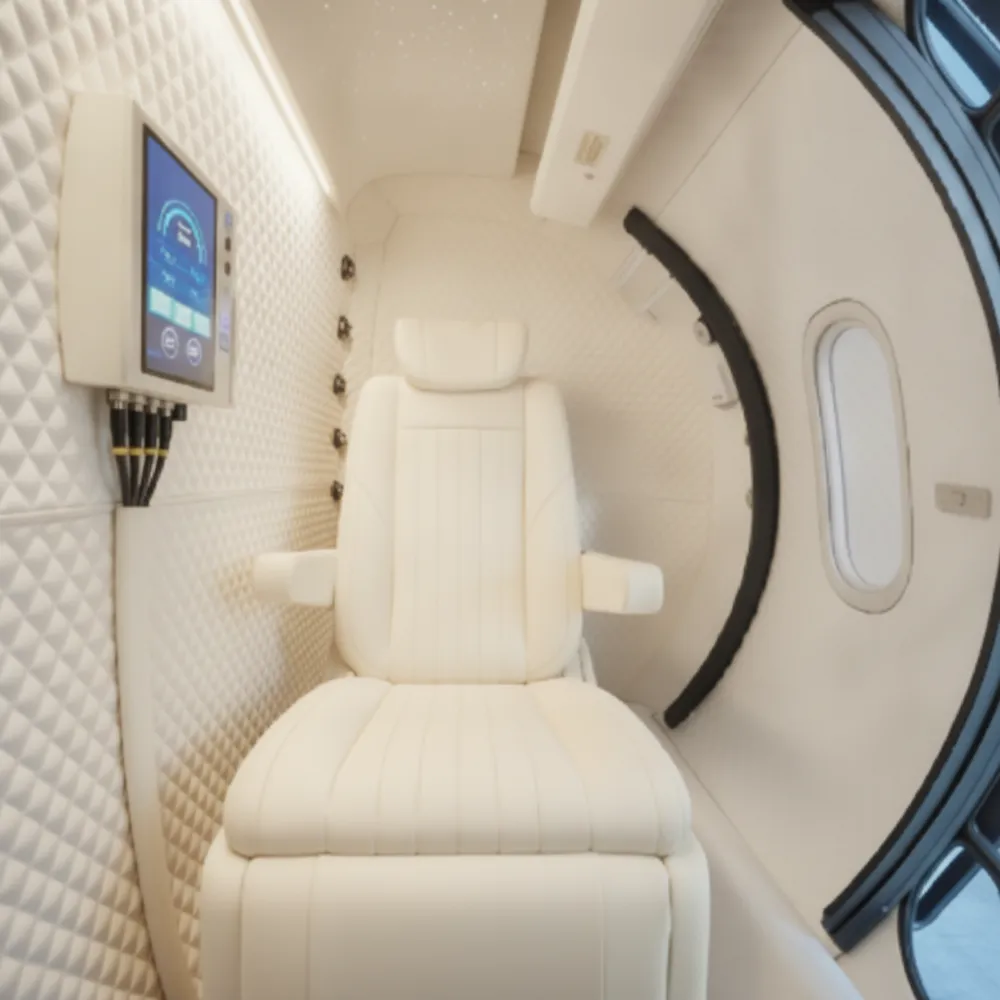

- Leather interior
- Direct service
Standard
Hard-shell pressure
1.5–2.0 ATA in sealed steel. Real deposits on the ledger, not the half-measure of a soft chamber.
Standard

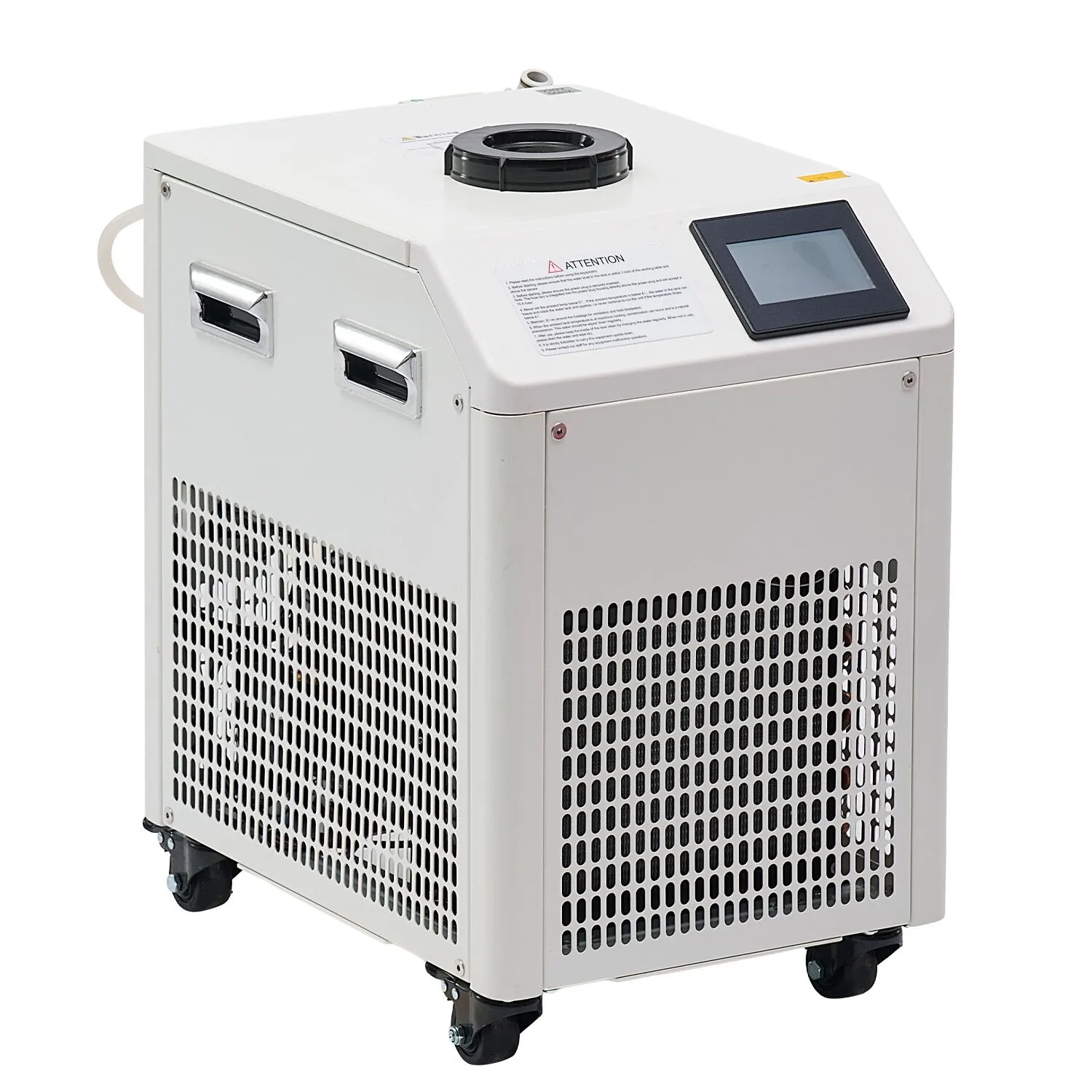

Climate control system
Advanced climate control maintains perfect cabin environment: cool, comfortable, and precisely controlled throughout every session.
Standard
Direct service line
Talk to the people who look after your chamber, for as long as you own it. One number, any time you need it.
Upgrade

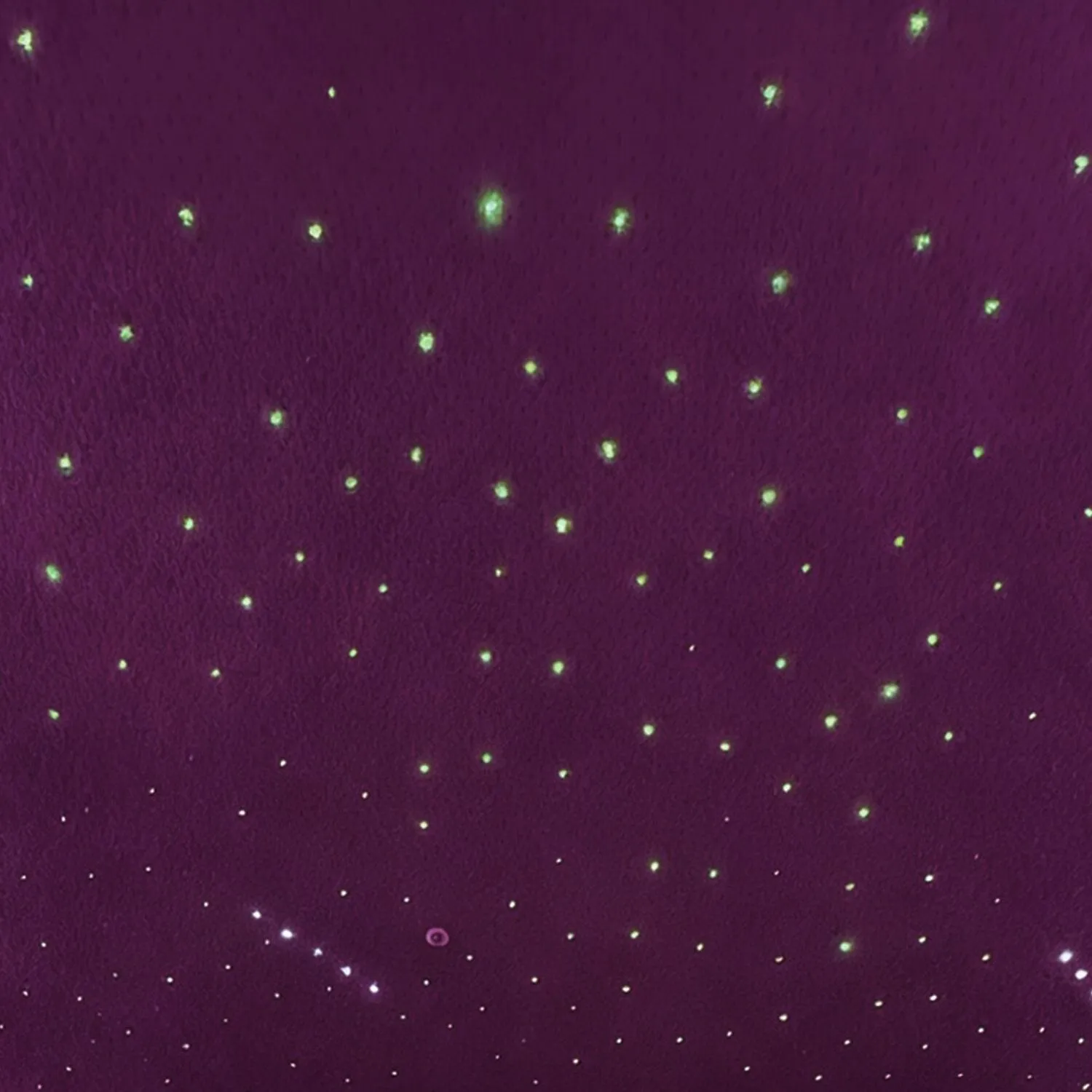

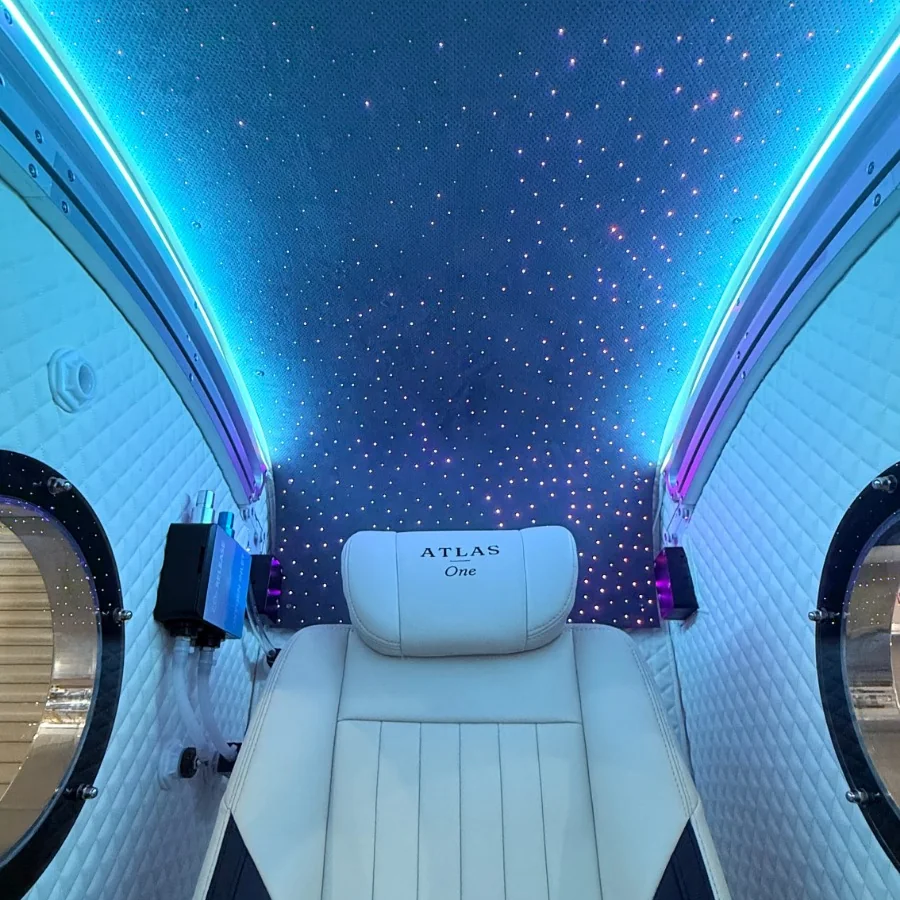

Starlight ceiling
Starry night overhead, the first-class cabin finish from premium aviation. Part of the Comfort pack, which also swaps in an electric reclining seat.
Upgrade

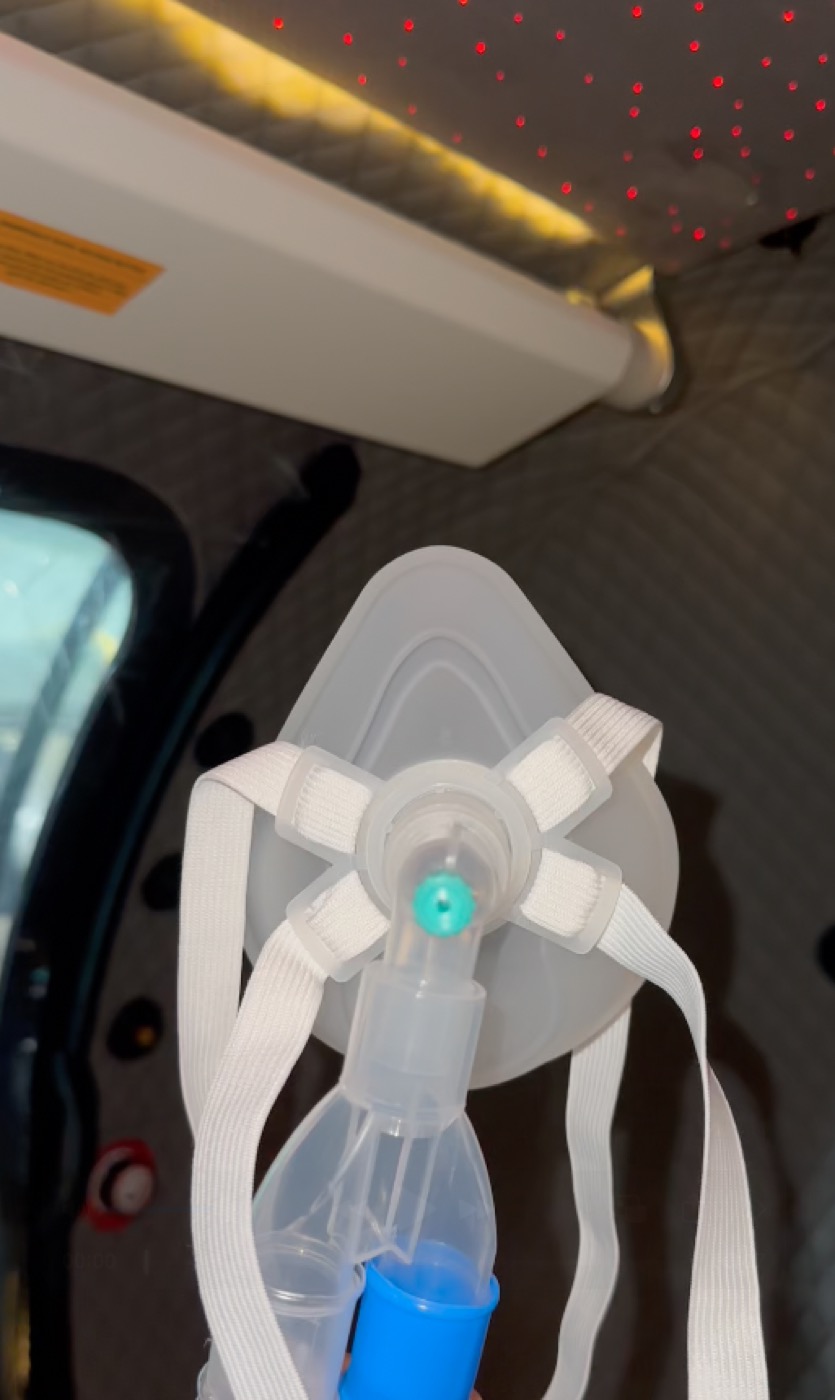

BIBS · Advanced Oxygen
A built-in breathing system delivers inhale-activated 95–98% pure oxygen direct to your breathing zone. Exhalation routed outside the chamber.
Specifications
The numbers.
- Type
- Monoplace hard-shell · sit-up
- Pressure
- 1.5 – 2.0 ATA
- Capacity
- 1 person
- Oxygen system
- Continuous flow · 93–97% oxygen purity · BIBS Advanced Oxygen available as upgrade
- Footprint
- 0.89 × 2.00 m
- Dimensions
- L 2,000 × W 887 × H 1,600 mm (962 mm wide including control panel; ±10 mm)
- Warranty
- 2 years, parts & labour
Full technical specifications, weight, material, noise level, concentrator flow, available on request.
Who this is for
- The home wellness builder. You're designing a real space in your house. Atlas One is the hard-shell chamber built to fit a home you already live in.
- The daily depositor. Sleep, training, bloodwork, recovery — hyperbaric is the next line item. You want a chamber that runs most days, not a boutique you drive to.
- The one who won't do it by halves. You've priced the compromise. Hard-shell pressure is the reason you're still reading.
- If you're running a multi-user clinic or need 2-person sessions, you'll be better served by another chamber in the range — ask us which.
Quality assured
Certifications & standards.
Built to international manufacturing standards: trust, safety, quality and reliability.
Built to ASME code
Boiler & Pressure Vessel Code
A chamber is a pressure vessel with a person inside it. The reference standard for that is the ASME Boiler and Pressure Vessel Code, and the vessel is engineered to it.
ISO-certified facility
9001 · 14001 · 13485
Quality management (9001), environmental management (14001), and 13485, the medical-device quality standard. Independently audited.
CE Marked
European Conformity
Compliance with European health, safety and environmental-protection standards.

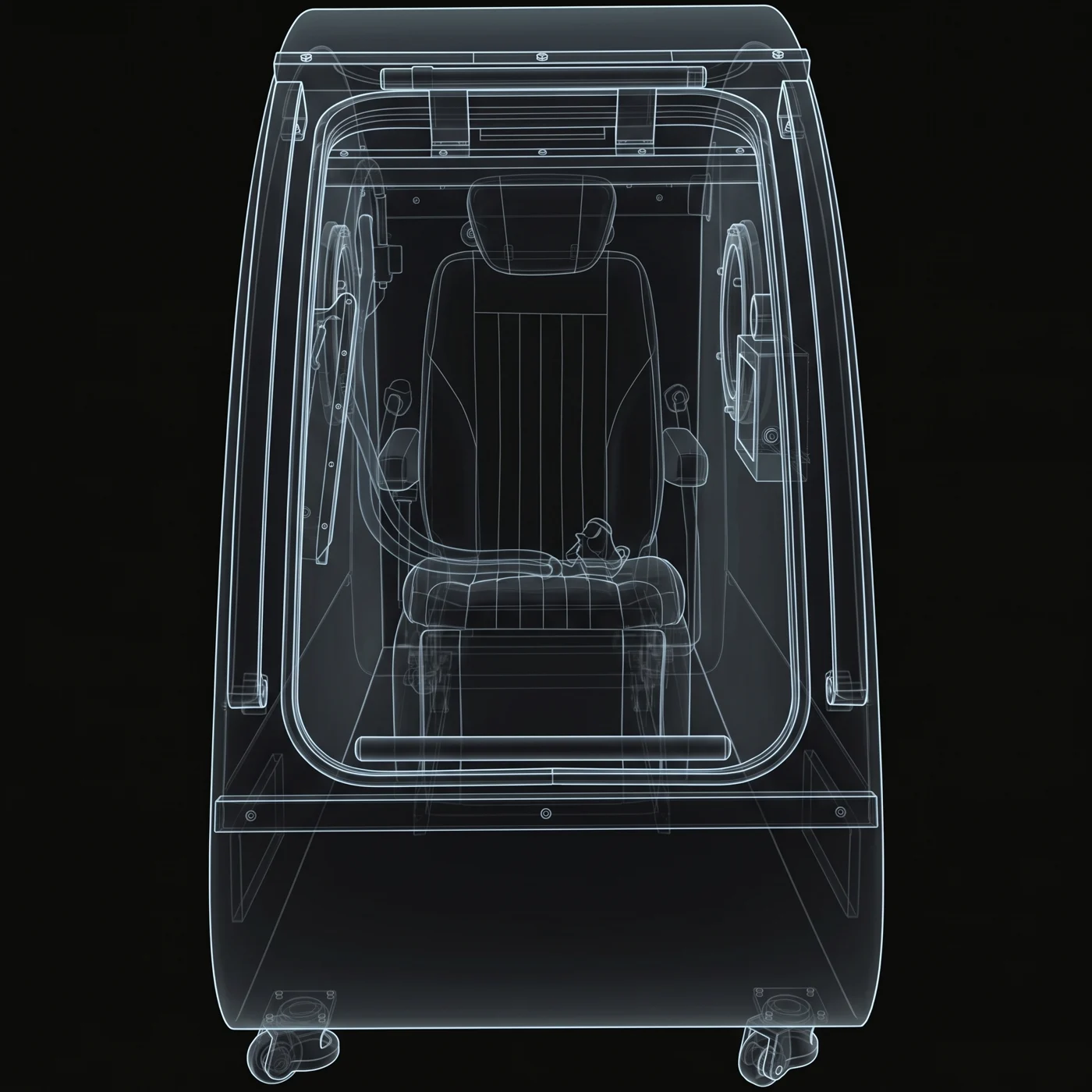

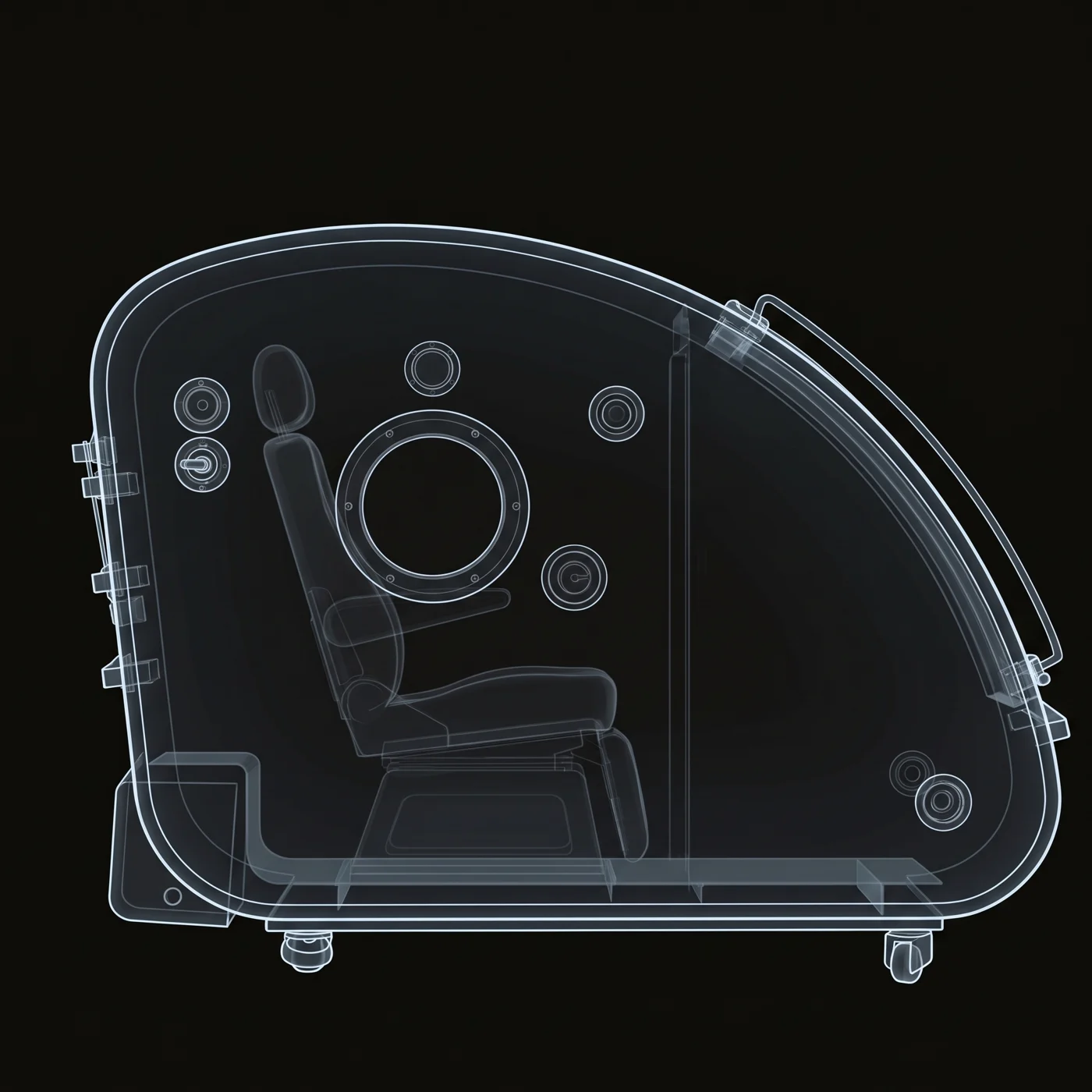

The chamber, drawn
Atlas One, inside and out.
The shell, the cabin and the seat, drawn from the chamber itself. Every dimension is from the spec sheet.
1600 mm 887 mm (962 with the control panel)
1600 mm 2000 mm - Chamber
- Hard-shell · sit-up · one person
- Pressure
- 1.5–2.0 ATA
- Oxygen
- Continuous flow, 93–97% purity BIBS mask, 95–98% (upgrade)
- Cabin, L × W × H
- 2000 × 887 × 1600 mm
- Width with panel
- 962 mm
- Weight
- 700 kg
- Controls
- HQO2 Protocol Technology™ 10.1″ touchscreen
- Noise
- Under 45 dB
- Power
- 2 × 10A GPO BIBS: 3 cords, O₂ unit on 15A
- Warranty
- 2 years, parts & labour
Hardware from AUD 78,900 — delivered & installed.
Make it yours
Design your Atlas One.
Start with the build. Choose your oxygen, seat and finish, then send the build with your quote request. We confirm upgrade pricing in your custom quote.

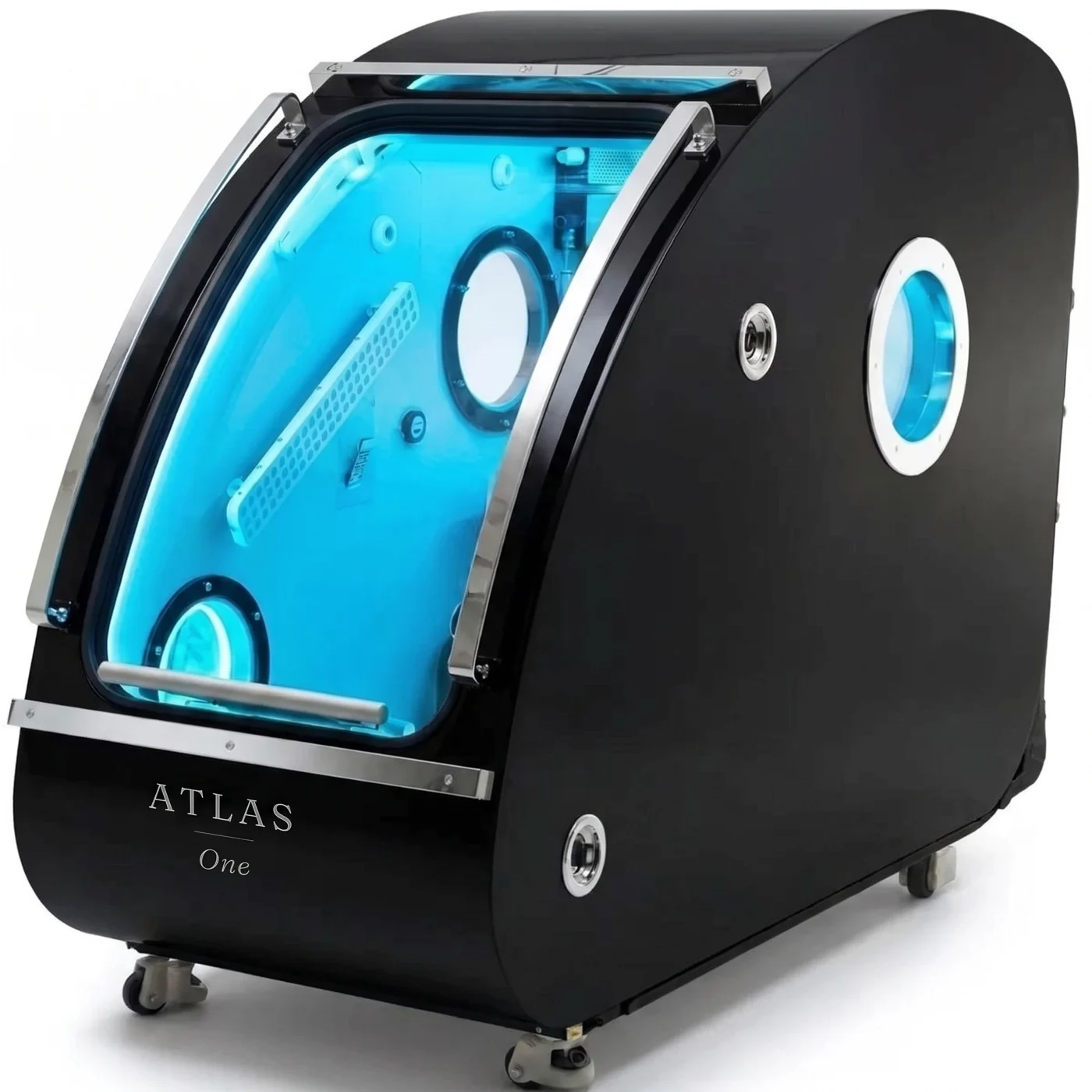

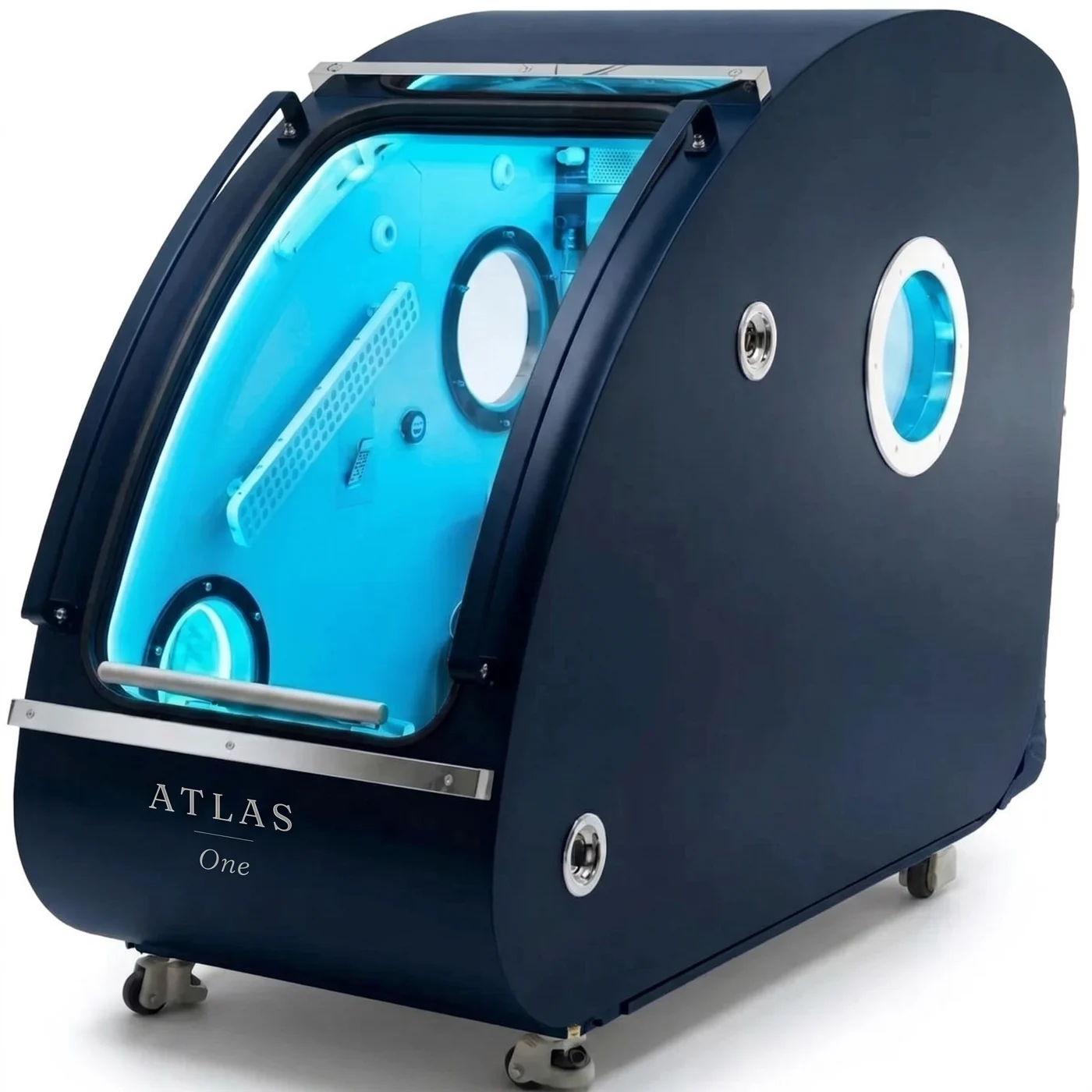

Exterior · Door open · Cabin · Starlight · Controls
Your Atlas One
Starting build
- Oxygen
- Standard Oxygen
- Protocols
- Pre-built protocols

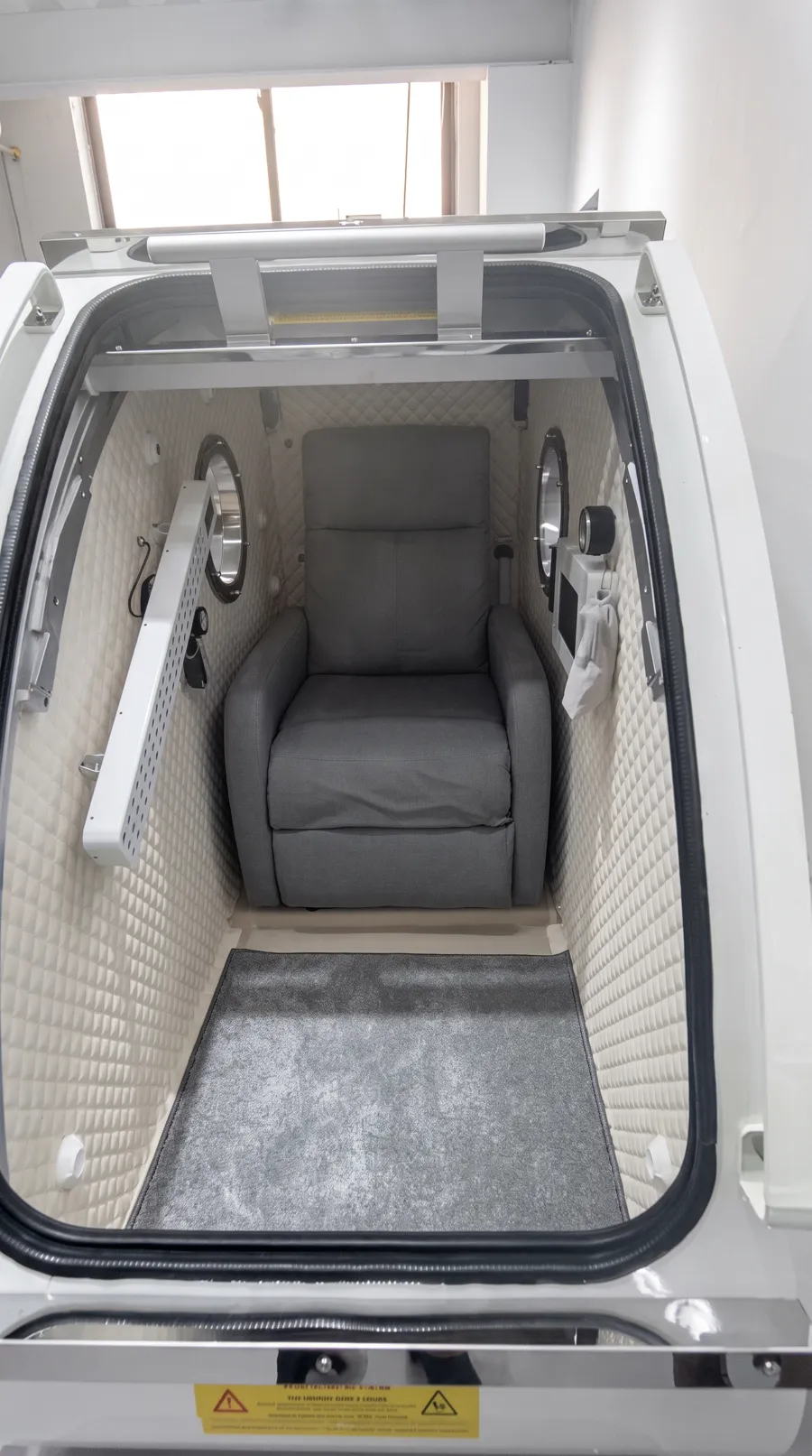

- Seat
- Standard seat
- Exterior
- White
- Cabin extras
- None
Hardware from AUD 78,900 — delivered & installed.
Upgrades are confirmed in your quote. We check your space and delivery on the call, then send final pricing.
Will it fit
Plan the room.
Atlas One and its two support units, drawn to scale. Measure your room against it, then send us the numbers.
Plan view · to scale 3D view · heights to scale
- Chamber · 887 × 2000 mm
- Oxygen & pressure unit · 660 × 420 mm
- Air cooler · 590 × 390 mm
- 1.0 m clear in front of the door
- Example room 3.6 × 3.6 m · 1 m grid
- Chamber · 1600 mm tall
- Oxygen & pressure unit · 900 mm tall
- Air cooler · 605 mm tall
Example layout, shown with Standard Oxygen. We confirm your room on the call.
- ≈ 8 m²
- Floor area to allow
- 1.7 m
- Minimum ceiling
- 1.0 m
- Clear in front of the door
- 700 kg
- Chamber, the heaviest unit
- Path in
- The cabin is 887 mm wide (962 mm with the control panel). We confirm the route in before install.
- Power
- Two standard 10A power points near the chamber, each ideally on its own circuit. With Advanced Oxygen, three, with the oxygen unit on a 15A circuit.
- In the box
- The chamber, the oxygen and pressure unit (69 kg) and the air cooler (43.5 kg). Delivery, installation and operator training are included.
- Air
- Ventilation to AS 1668.2. Allow a 200 mm gap around the support units.
Technical details
Operating & electrical specifications.
Everything Atlas One needs on-site: components and power. Share this section with your electrician or installer ahead of delivery.
Operating Components
Pressurised Oxygen Generation System
- Width
- 660 mm
- Depth
- 420 mm
- Height
- 900 mm
- Weight
- 69 kg
- Power
- 230V / ≈1,800W / ≈7.8A
- Air Flow
- 140 L/min
- Oxygen Flow Rate (standard)
- 10 L/min
- Oxygen Flow Rate (BIBS upgrade)
- 20 L/min
- Oxygen Purity (BIBS upgrade)
- 95–98%
Air Cooler
- Width
- 590 mm
- Depth
- 390 mm
- Height
- 605 mm
- Weight
- 43.5 kg
- Power
- 230V / ≈900W / ≈3.9A
- Temperature Range
- 41–60 °F
Chamber & Electrical
Chamber Cabin
- Length
- 2,000 mm
- Width
- 887 mm (962 mm including control panel)
- Height
- 1,600 mm
- Weight
- 700 kg
- Operating Pressure
- 2.0 ATA
Electrical Requirements
- Voltage
- 230V / 50Hz (AU-configured)
- Power Cords
- 2 (standard) · 3 (with BIBS upgrade)
- Outlets
- Standard AU 10A power points, one per cord (BIBS oxygen unit on a 15A circuit)
Power & Circuits
Atlas One runs on standard Australian 10A power points. The standard configuration uses two cords (the oxygen generation system and the climate module), ideally on separate circuits. With the Advanced Oxygen (BIBS) upgrade there are three cords, each ideally on its own circuit, and the oxygen unit needs a 15A circuit. Your licensed electrician confirms final circuit sizing and RCD protection to AS/NZS 3000.
