Standard
Soft-shell with triple-zip closure
A durable soft shell with a triple-zip closure over an internal metal frame, and four viewing windows. It packs down and rebuilds in minutes if you move rooms.
Soft-shell · Sit or lie · One person
Aria
The everyday soft-shell.
A soft-shell chamber for one that packs down and moves room to room. Oxygen is made on board, the 1.3, 1.4 and 1.5 ATA valves come with every Aria, and it runs from a standard power point.
Hardware from AUD 24,900 — delivered & installed.
Choose your finish, then send the build with your quote request. Or book a 15-minute call, text, email or phone us.
- No tanks, no refills
- Oxygen is made on board
- ≈ 3.7 × 1.7 m
- Floor space, with clearances
- 1.2 m
- Minimum ceiling
- Standard power point
- No electrician needed
- Up to 1.5 ATA
- 1.3, 1.4 and 1.5 ATA valves included
What's inside
The everyday soft-shell.
Packs down, plugs in.

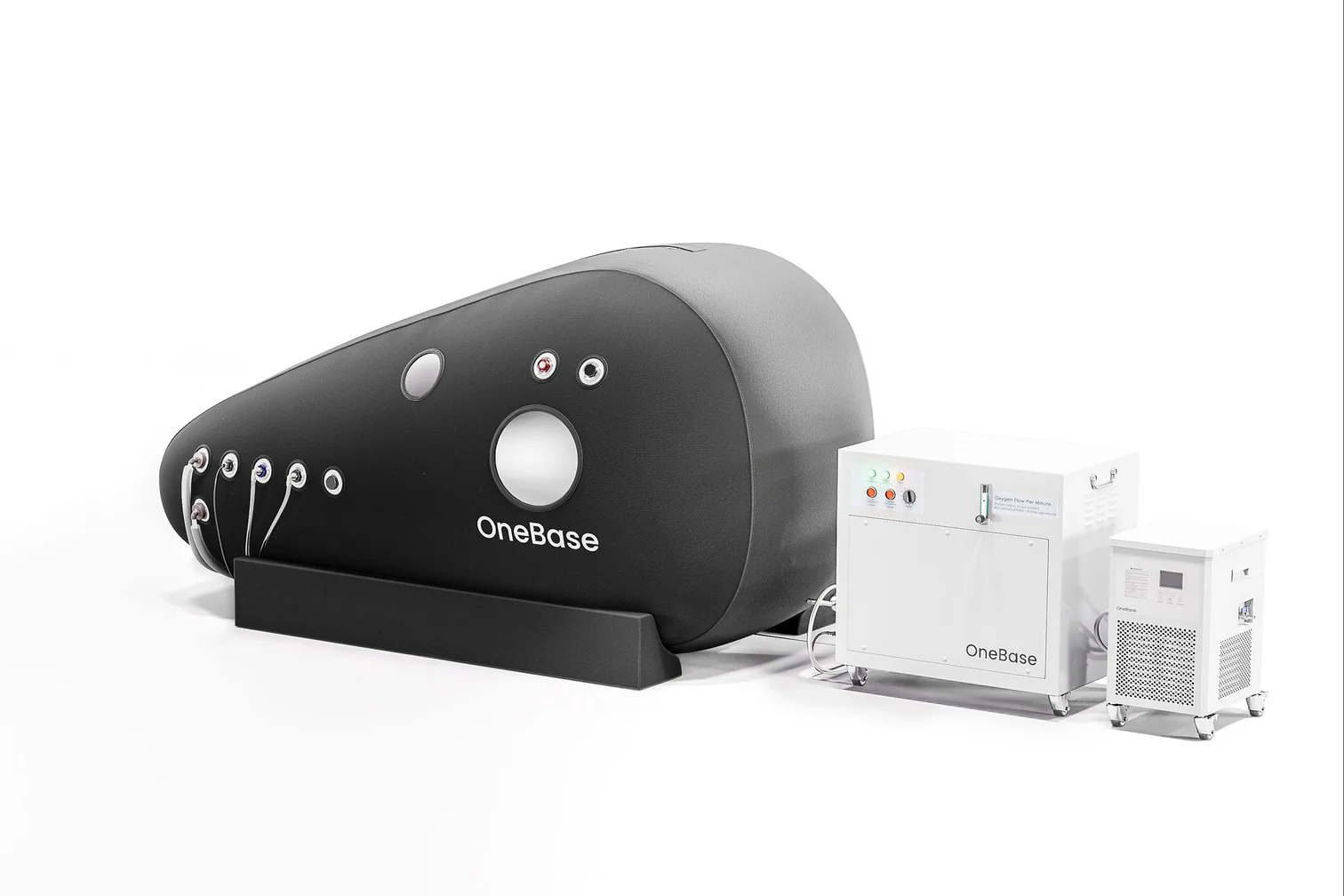

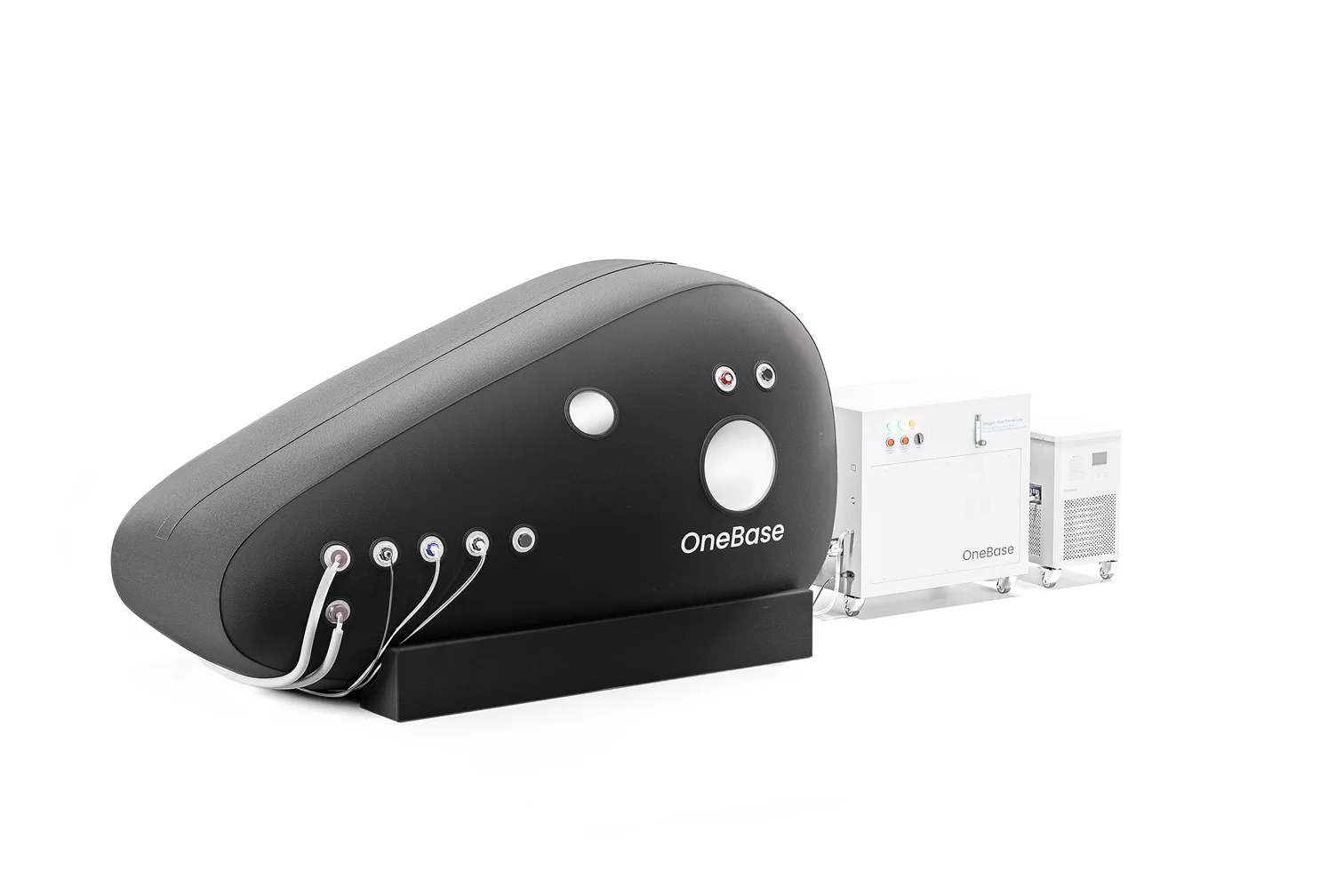

A soft shell over an internal metal frame, four viewing windows, and oxygen made on board. It moves room to room and runs from a standard power point.
Standard
Oxygen made on board
The oxygen & pressure unit has the oxygen concentrator built in, so every Aria makes its own oxygen, breathed through a face mask or nasal cannula. No tanks, no refills.
The chamber, drawn
Aria, inside and out.
The soft shell, its windows and fittings, and the cradle beneath, drawn from the chamber itself. Every dimension is from the spec sheet.
1100 mm 2200 mm - Chamber
- Soft-shell · sit or lie · one person
- Pressure
- 1.3 / 1.4 / 1.5 ATA (valves included)
- Oxygen
- On-board concentrator, face mask or nasal cannula
- Cabin, L × W × H
- 2200 × 700 × 1100 mm
- Weight
- 10 kg
- Power
- Standard AU power point No electrician needed
- Warranty
- 2 years
Hardware from AUD 24,900 — delivered & installed.
Make it yours
Design your Aria.
Every Aria comes with Standard Oxygen made on board and all three pressure valves. Choose your finish, then send the build with your quote request.
Exterior · System · Narrow end
Your Aria
Starting build
- Oxygen
- Standard Oxygen
- Pressure
- 1.3, 1.4 and 1.5 ATA valves
- Exterior
- White
Hardware from AUD 24,900 — delivered & installed.
We check your space and delivery on the call, then confirm your price in the quote.
Will it fit
Plan the room.
Aria, its oxygen & pressure unit and its air conditioner, drawn to scale. Measure your room against it, then send us the numbers.
Plan view · to scale 3D view · heights to scale
- Chamber · 2200 × 700 mm
- Oxygen & pressure unit · 580 × 420 mm
- Air conditioner · 420 × 430 mm
- 1.0 m clear in front of the zip
- Example room 4.3 × 3.0 m · 1 m grid
- Chamber · 1100 mm tall
- Oxygen & pressure unit · 560 mm tall
- Air conditioner · 610 mm tall
Example layout, shown with Standard Oxygen. We confirm your room on the call.
- ≈ 6 m²
- Floor area to allow
- 1.2 m
- Minimum ceiling
- 1.0 m
- Clear in front of the zip
- 10 kg
- Chamber weight
- Path in
- Packs down and carries through a normal doorway, with no crane, hoist or lift booking. It rebuilds in minutes.
- Power
- A standard power point within reach of the two machines. No electrician needed.
- In the box
- The chamber, the oxygen & pressure unit (concentrator and compressor, 80 kg) and the air conditioner (26 kg). Delivery, installation and operator training are included.
- Air
- Allow a 200 mm gap around the oxygen & pressure unit and the air conditioner for airflow and the connecting hoses.
Technical details
Chamber, components, & certifications.
Everything Aria needs on-site: the cabin, its two units and power. Share this section with anyone helping you site the chamber.
Chamber & Components
Chamber Cabin
- External Dimensions
- 2200 × 700 × 1100 mm (L × W × H)
- Construction
- Durable soft shell, triple-zip closure
- Frame
- Internal metal frame
- Windows
- 4 viewing windows
- Operating Pressure
- Up to 1.5 ATA · 1.3, 1.4 and 1.5 ATA valves included
Oxygen System
- Delivery
- Face mask or nasal cannula
- Oxygen Source
- On-board concentrator, built into the oxygen & pressure unit

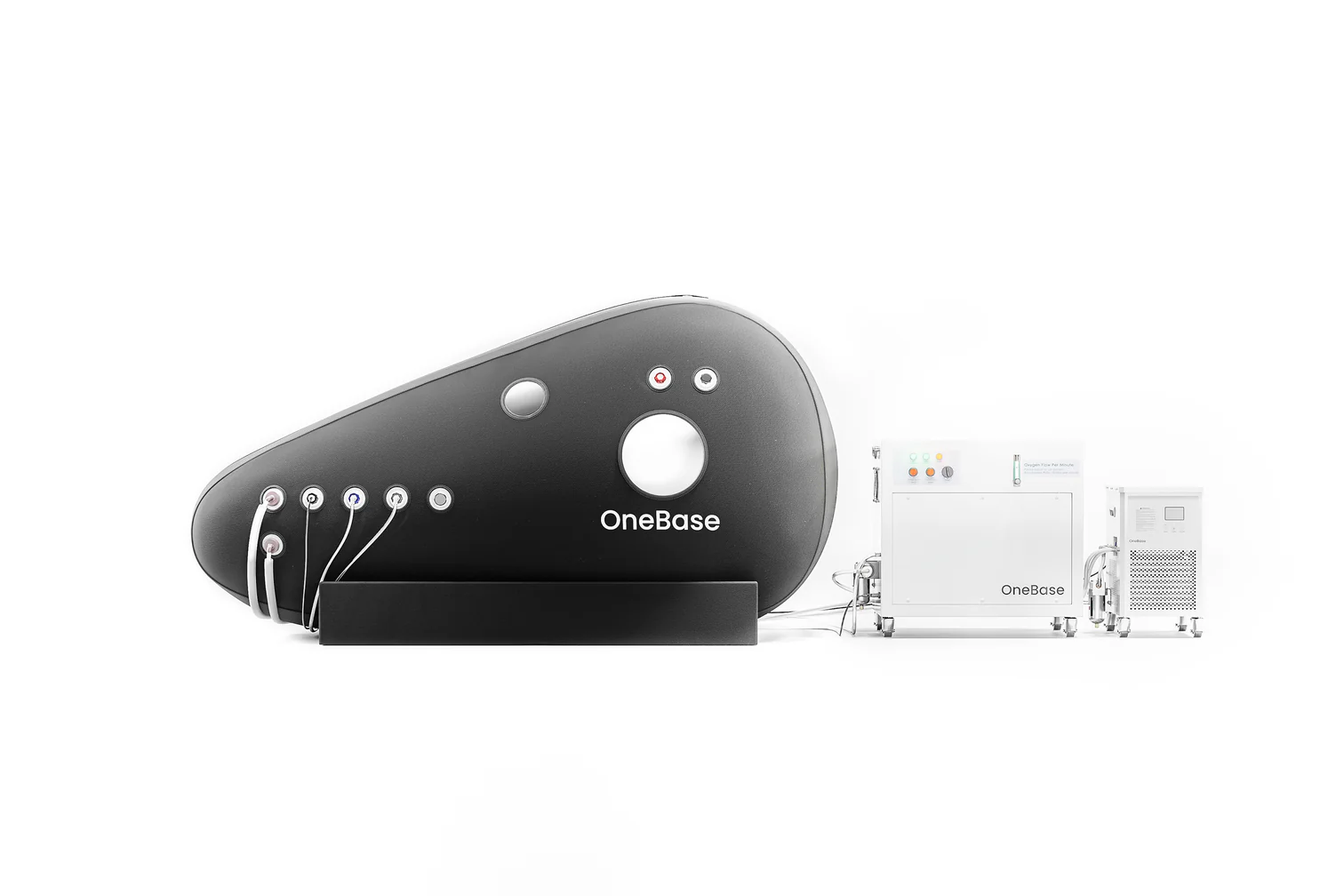

Oxygen & Pressure Unit
- Contains
- Concentrator and compressor
- Dimensions
- 580 × 420 × 560 mm
- Weight
- 80 kg
- Type
- Oil-free compressor, on castors
- Filtration
- 0.001 micron
Air Conditioner
- Dimensions
- 420 × 430 × 610 mm
- Weight
- 26 kg
- Power
- 300 W
Installation & Support
Power & Lead Time
- Power
- Standard power point, no electrician needed
- Lead Time
- About 12 weeks, confirmed on your quote
- Finish Options
- White or Black
- Install Type
- Plug-in, no structural work required
Certifications
- Quality & Safety
- CE, ISO 9001, ISO 13485, ISO 14001
Pressure: 1.3, 1.4 and 1.5 ATA
Every Aria comes with all three valves and runs up to 1.5 ATA, so there is no pressure tier to choose. We go through how you plan to use it on the call.
Apartment-ready
Soft-shell, no structural install. It packs down if you move, a real option for renters and small spaces.
Talk to an expert
Rather talk it through?
Your build comes with you, whichever way you get in touch.
- Quick delivery
- Full warranty
- Precision engineered
Request your quote
Tell us what you're building.
We'll confirm your configuration, your space and your delivery details, then send final pricing.
