Standard

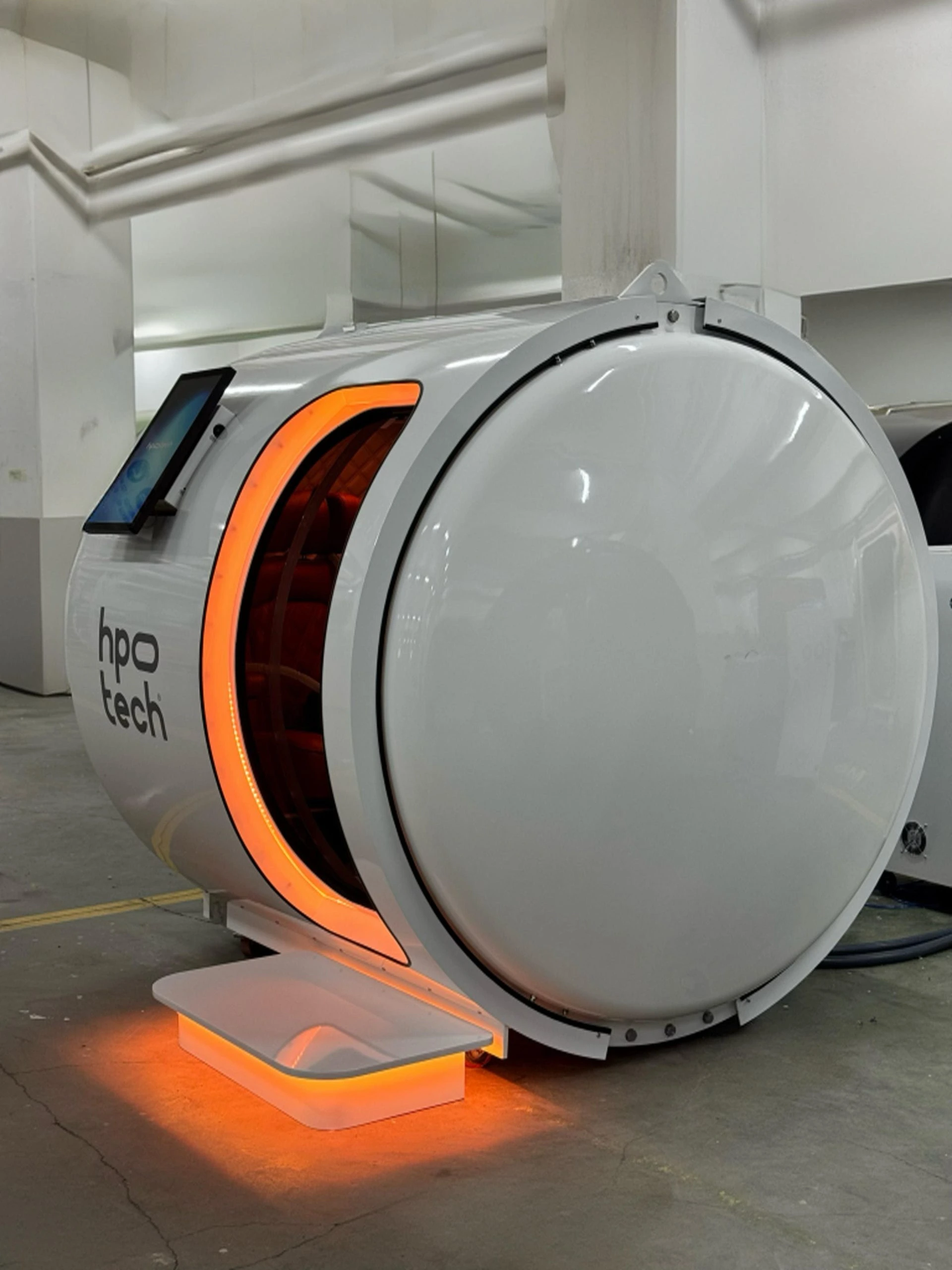

Walk-in door
Full-height entry, not a portal. Easier for older users, mobility-conscious buyers, and anyone who'd rather step in than climb in.
HPOTech · Partner chamber
Atlantis
Dual-seat multiplace for couples and efficiency.
From AUD 233,827. Delivered & installed.
Book your consultation
What's inside

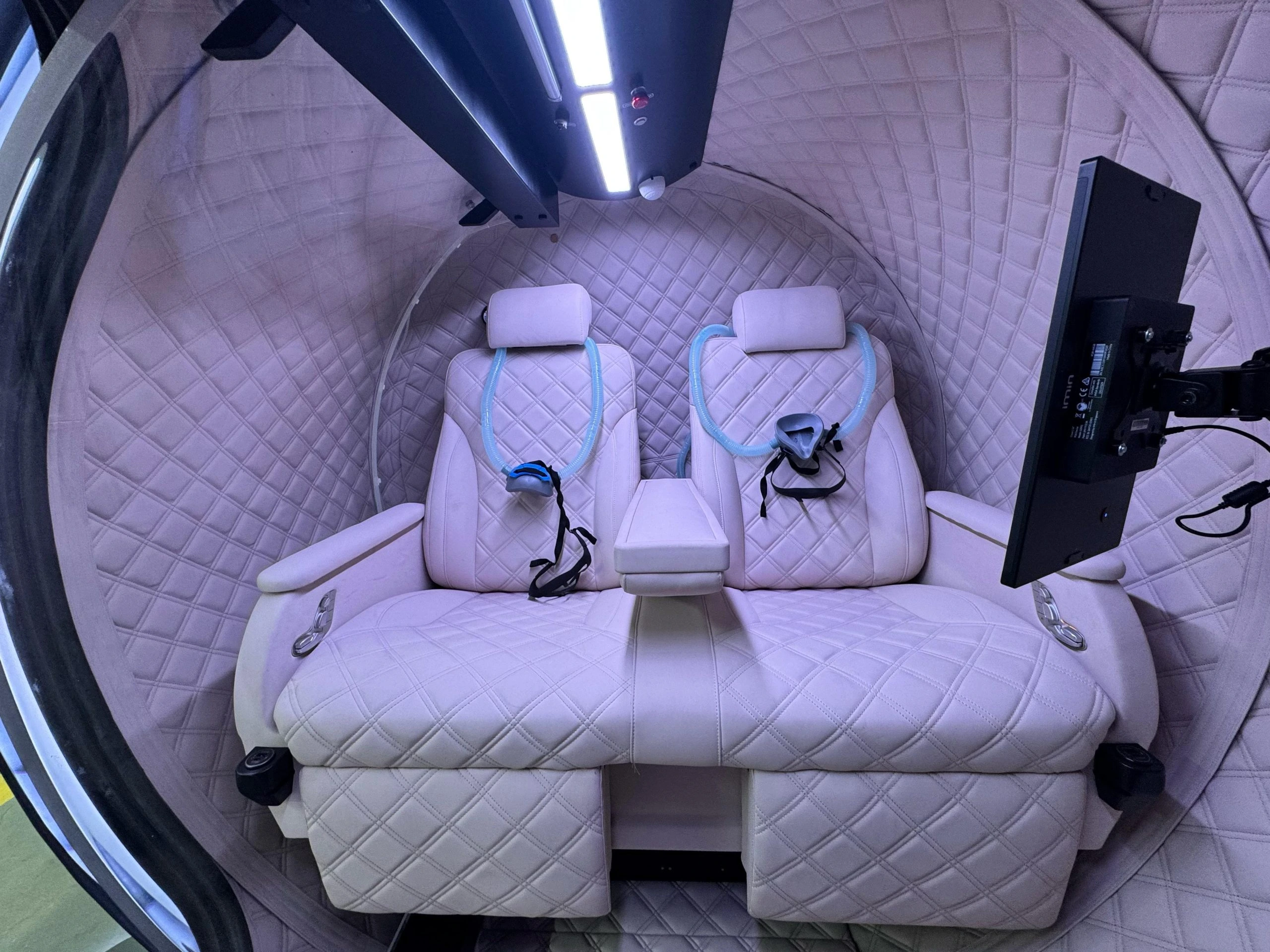

Two in the cabin.
One footprint.
Atlantis is the dual-seat sibling to Zeugma: walk-in, sit-up, dual BIBS as standard. Built for couples, family sessions, or two-at-a-time sessions.
Standard

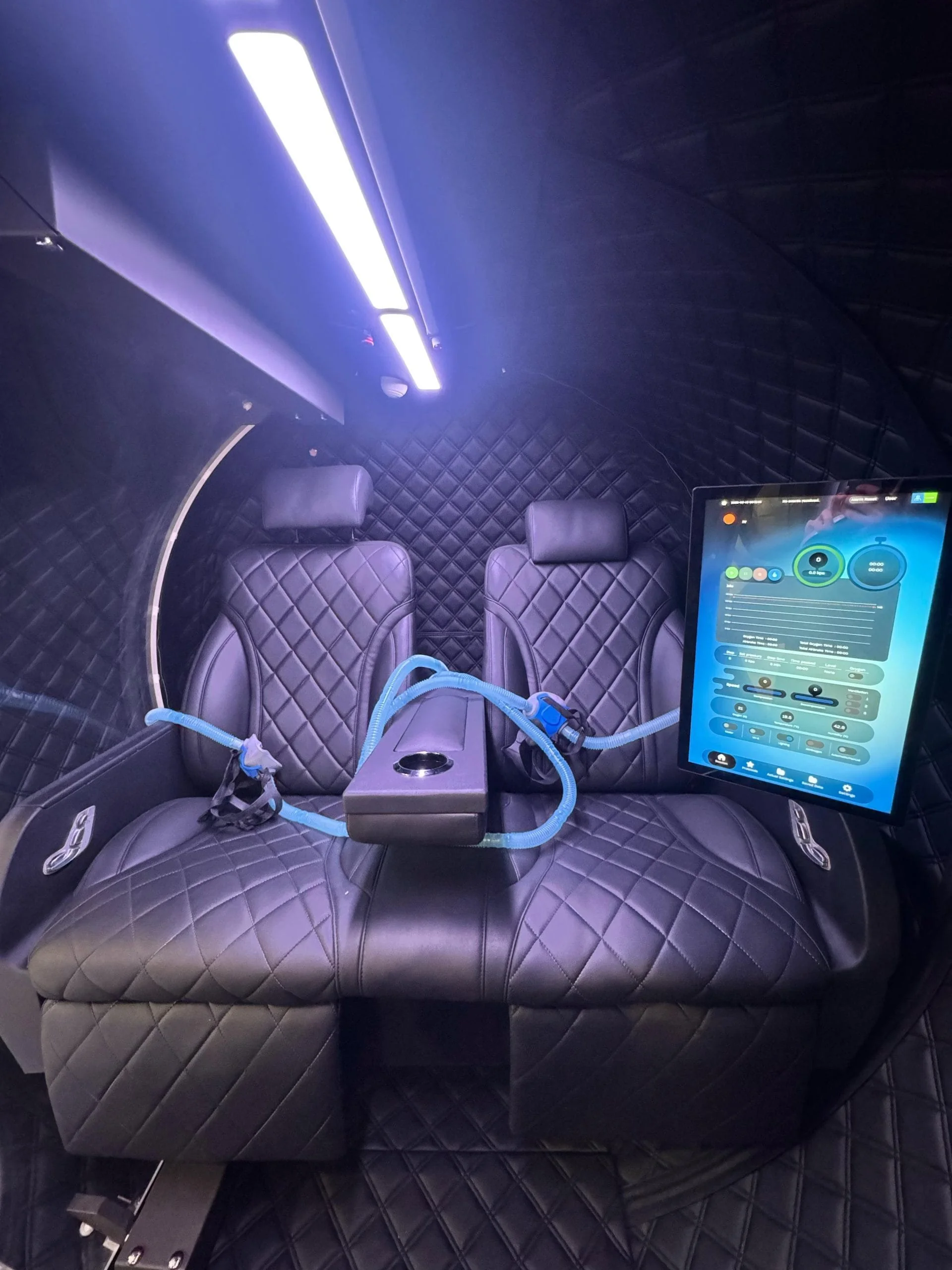

Dual BIBS Advanced Oxygen
Two built-in breathing systems, one per seat, standard on every Atlantis build. Each occupant gets the premium oxygen delivery standard, not a shared flow.
Standard

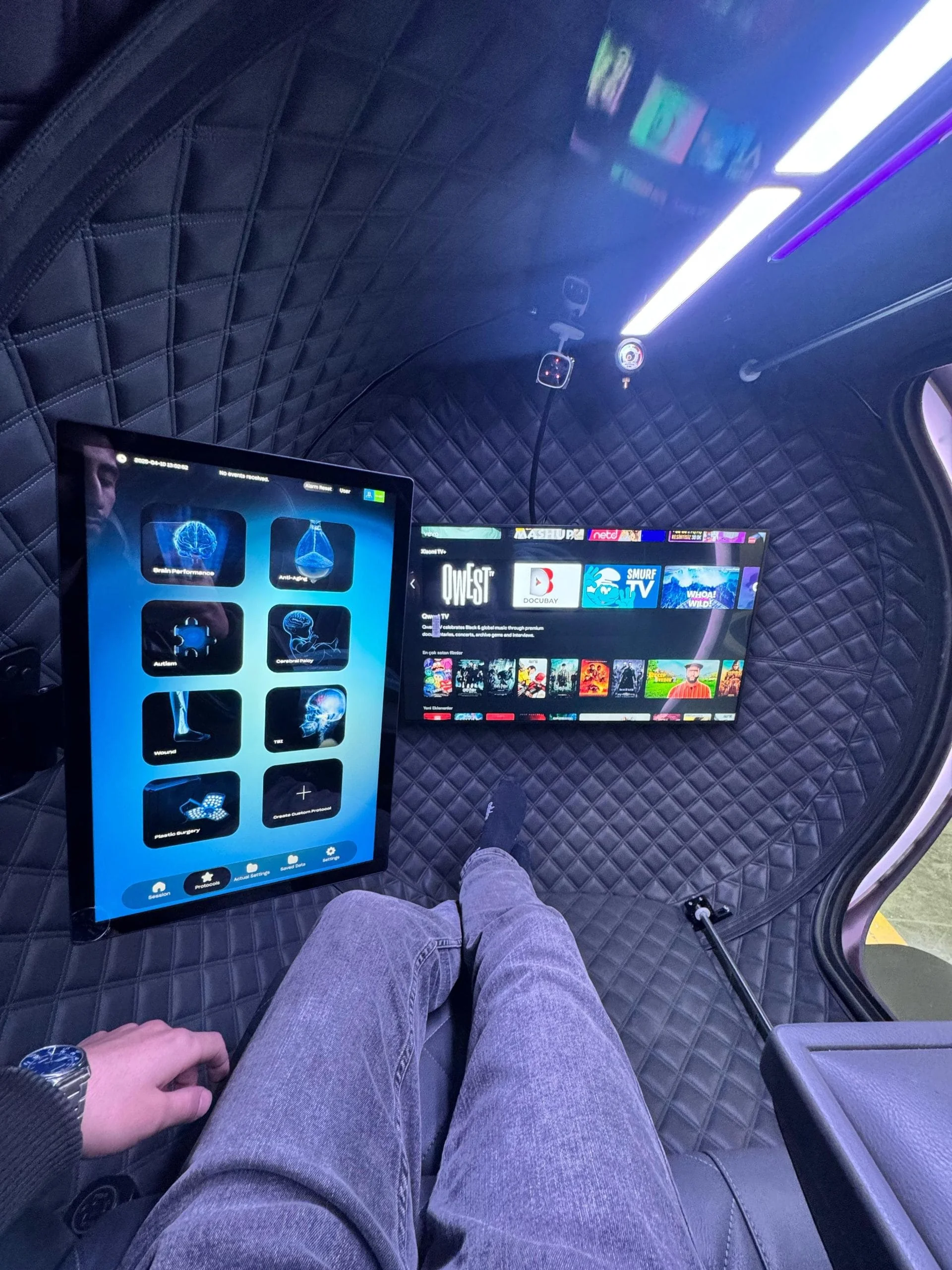

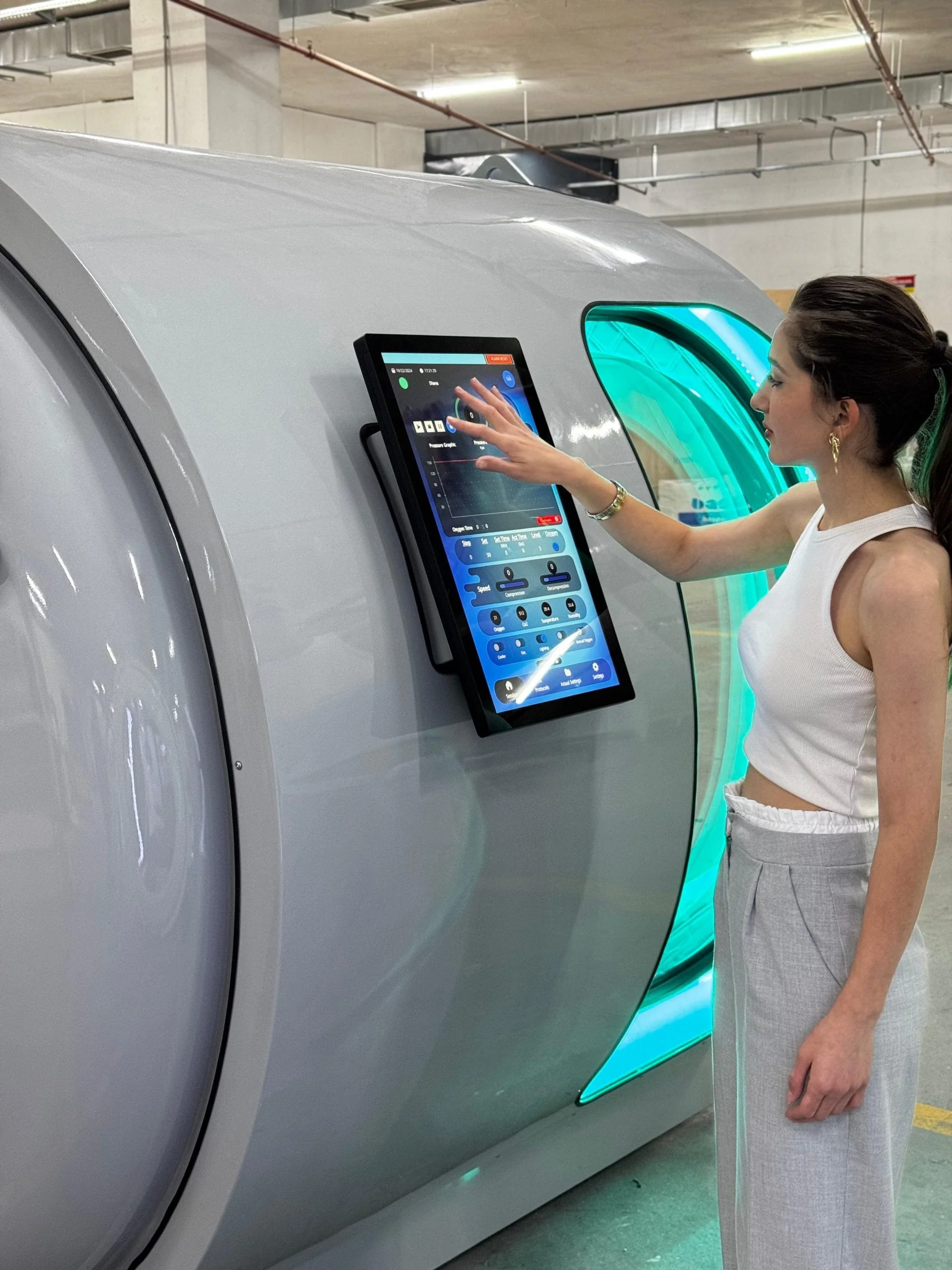

Digital session control
Automated pressure ramp, dwell, and exit. Individual entertainment options at each seat.
Upgrade
2.4 ATA: optional upgrade
Optional upgrade. Lifts the pressure ceiling from the standard 2.0 ATA build to the full 2.4 ATA range.
Upgrade
Cabin upgrades
Larger Size (wider cabin), Maybach seating, and an additional window: the full concierge fit-out.
Specs snapshot
| Manufacturer | HPOTech |
| Pressure | Up to 2.0 ATA · 2.4 ATA optional upgrade |
| Capacity | 2 people · sit-up · walk-in |
| Oxygen System | Dual BIBS Advanced Oxygen (standard) |
| Warranty | 2 years |
The full technical breakdown (dimensions, footprint, power, safety, and the complete certification portfolio) sits below. Share the Technical details section with your electrician and installer ahead of delivery.
Technical details
Chamber, installation, & safety specifications.
Everything Atlantis needs on-site, plus the certification portfolio. Build-to-order configuration is locked during scoping; these are the baseline specs.
Chamber & Cabin
Chamber Cabin
- External Dimensions
- 2,150 × 2,000 × 1,860 mm (L × W × H)
- Weight
- 1,050 kg
- Operating Pressure
- 1.5 to 2.0 ATA · 1.5 to 2.4 ATA with optional upgrade
- Construction
- Pressure-rated steel
- Design
- Modular, assembled in-room
- Entry
- Walk-in door
Oxygen System
- Delivery
- Dual BIBS mask system (standard)
- Additional O₂ Concentrator
- Configurable
Installation & Safety
Footprint & Environment
- Minimum Floor Space
- 4.4 × 3.0 m
- Lead Time
- Build-to-order, confirmed in scoping
Included Features
- Air Compressor
- Included
- Climate Control (Chiller)
- Included
- Entertainment
- Individual options per seat
- Installation & Training
- Included
Certifications
- Medical Device
- 93/42/EEC (MDD), MDR, UKCA
- Pressure Vessel
- ASME PVHO, ASME U-Stamp, PED, Turk Lloydu
- Regional Approvals
- Medsafe NZ, Thai FDA, FDA Ghana, SFDA, UAE MOH
- Machinery & Safety
- 2006/42/EC, NFPA, ANEP 26, 2001/95/EC
- Quality & Management
- ISO 13485, ISO 9001, ISO 45001, ISO 14001, ISO 27001
Build-to-order
Atlantis is European-manufactured to order. Final configuration (pressure tier, Larger Size, Maybach seating, additional concentrator) is locked during scoping and reflected in your custom quote.

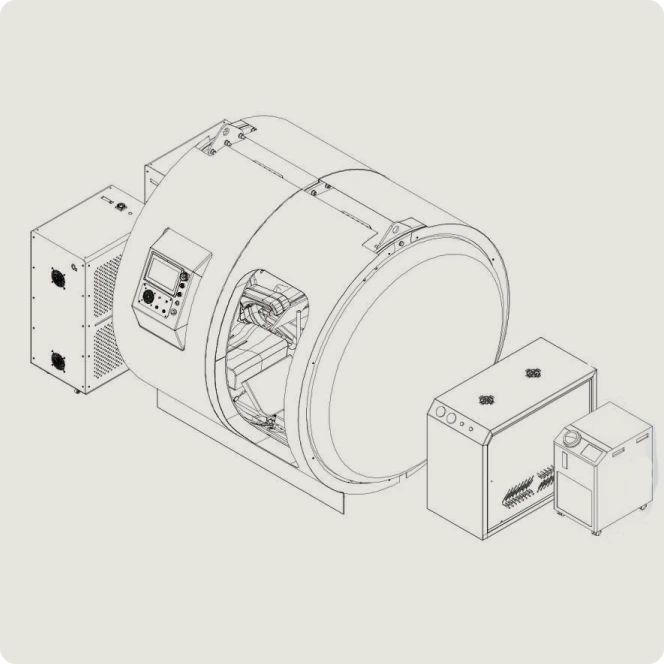

Fits through a standard doorway
Modular construction. Designed to pass through standard doorways and assemble on-site in a room of 4.4 × 3.0 m or larger. No structural work required.
Scoping visit
We confirm footprint, doorway clearance, and power requirements on-site before order. No surprises on delivery day.
