Standard

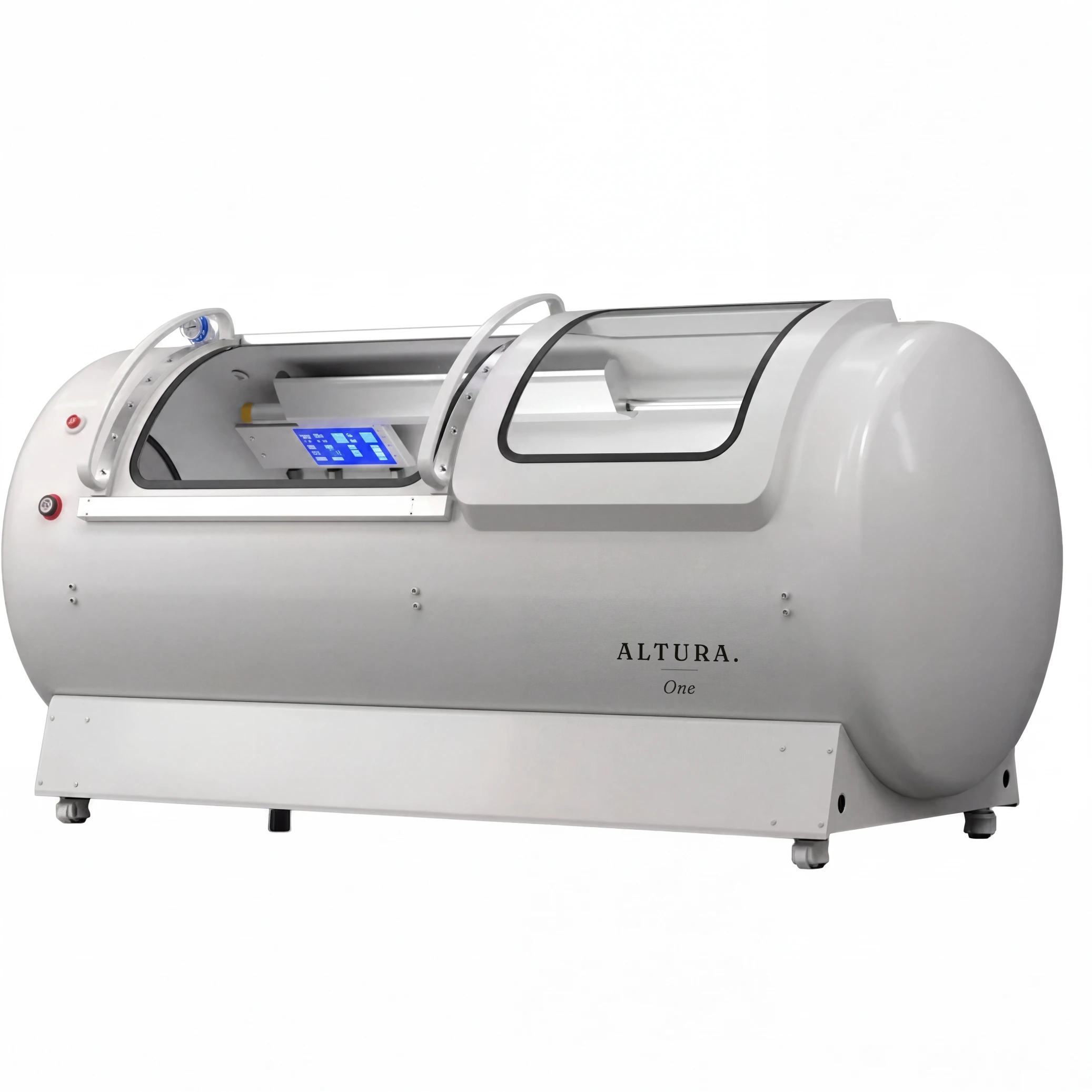

Two large viewing windows
Open external sightline through every session, lying flat. Built to be looked out of, not sealed off from. The reason buyers pick lay-down with Altura.
Hard-shell · Lay-down · One person
Altura One
The restorative lay-down chamber.
Lie flat in a stainless steel cabin, with two windows for a view the whole session. Standard Oxygen is made on board, and Advanced Oxygen can be specified when you order.
Hardware from AUD 99,900 — delivered & installed.
Choose your oxygen, leather and finish, then send the build with your quote request. Or book a 15-minute call, text, email or phone us.
- No tanks, no refills
- Oxygen is made on board
- ≈ 3.5 × 1.9 m
- Floor space, with clearances
- 10A
- Standard power points
- Up to 2.0 ATA
- In sealed steel

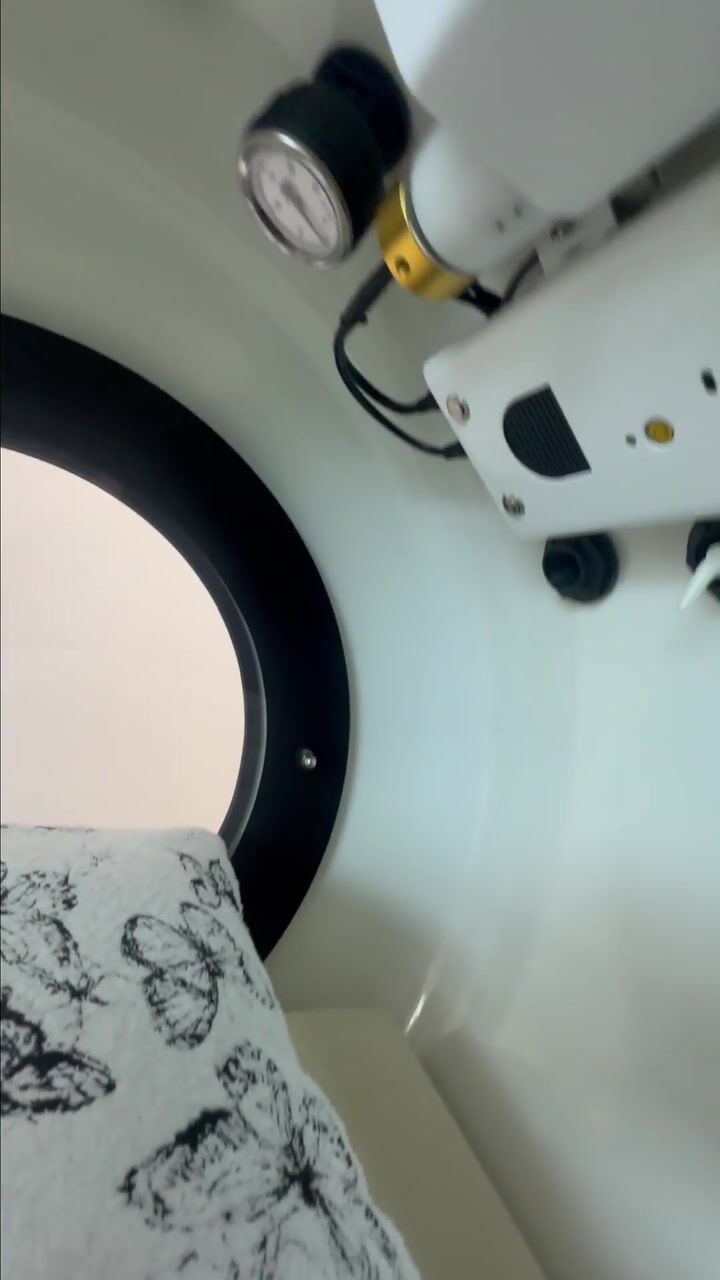

Walkthrough
See Altura One in motion.
Filmed inside the cabin: the control screen, the windows, and what lying flat in it actually looks like.

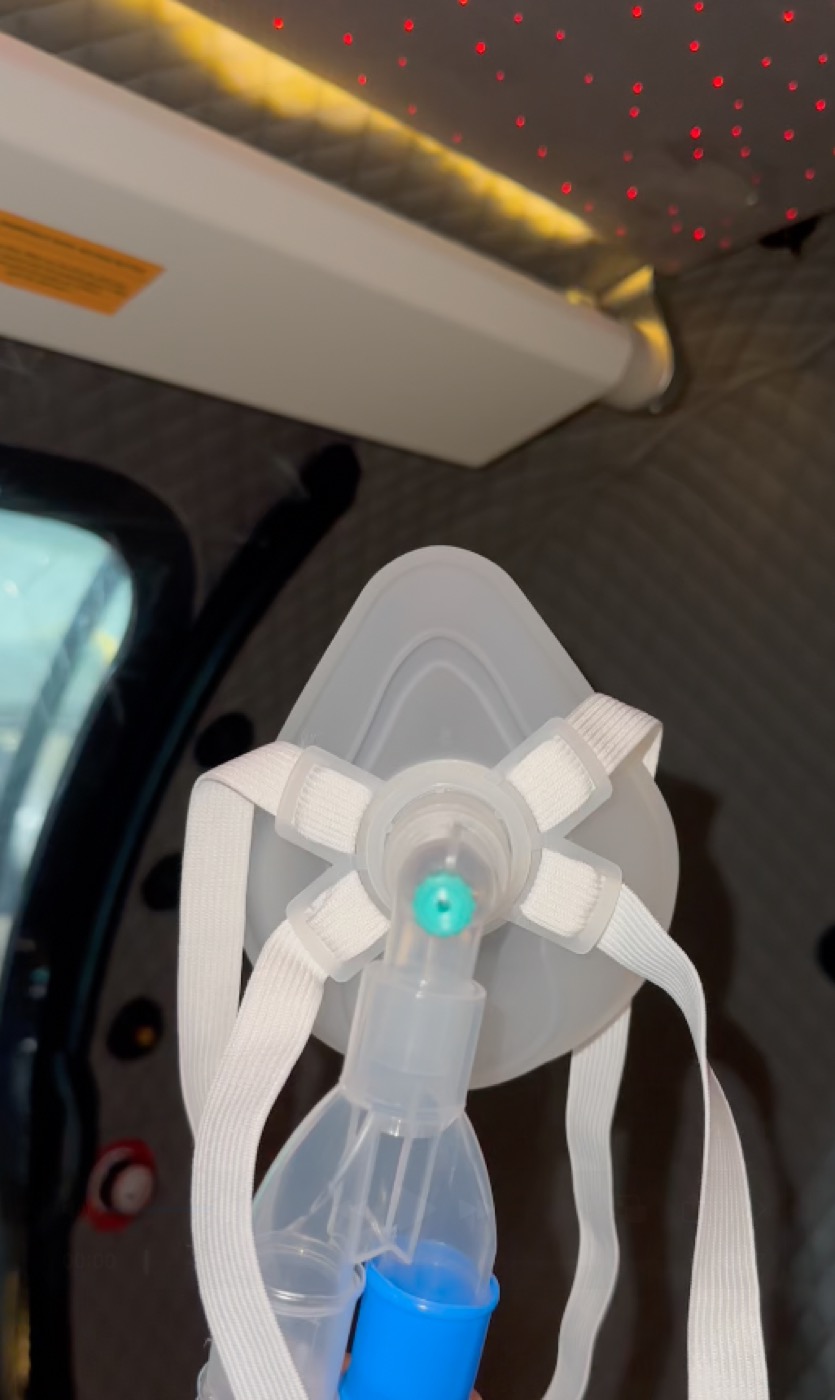

Advanced Oxygen
Step up to sealed-mask oxygen.
Altura One ships with Standard Oxygen. Choose the Advanced Oxygen (BIBS) upgrade when you order and a demand-valve mask delivers high-purity oxygen, with exhalation routed outside the chamber.
BIBS · 95–98% O₂ · demand valve
The chamber

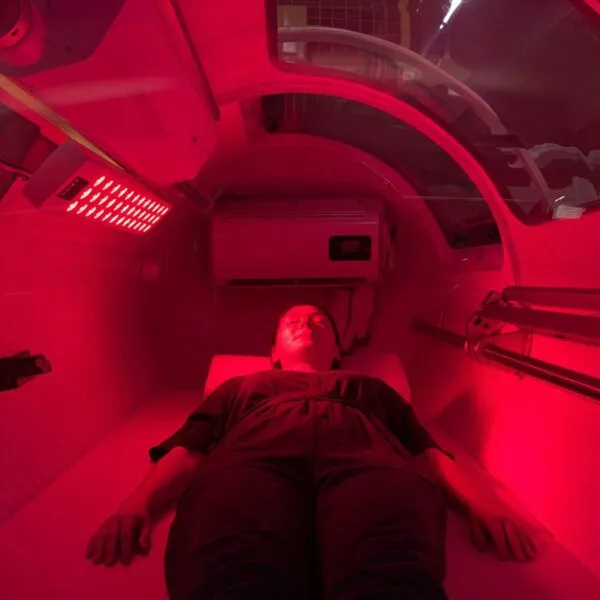

Lay flat. Look out.
- Two windows
- Hard-shell pressure
- Climate control
- Touchscreen
- Pre-built protocols
- Safety valves
Standard
304 stainless cabin
2.5mm 304 stainless steel cabin with a 10mm polycarbonate door. Built like equipment, finished like furniture, for the decade-plus install.
Standard
Premium leather interior
Six leather colours, all included, with Glacier white as standard. Comfort-forward fit-out for longer sessions.
Standard

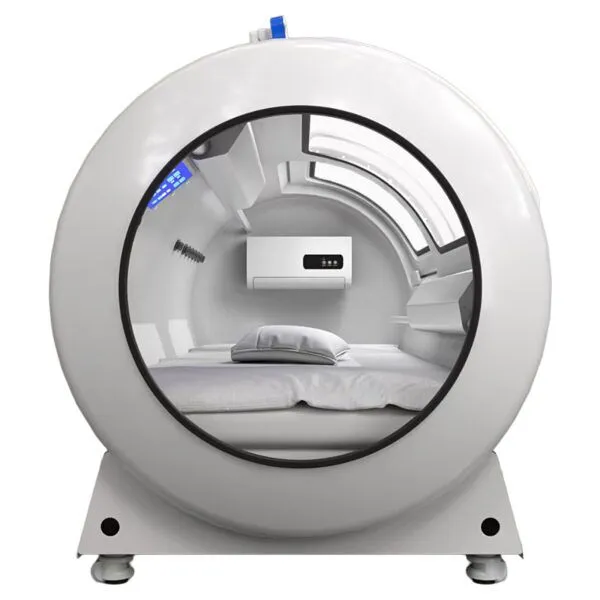

Cabin air conditioner
A cabin air conditioner comes with the chamber, so long sessions stay even-temperature.
Standard

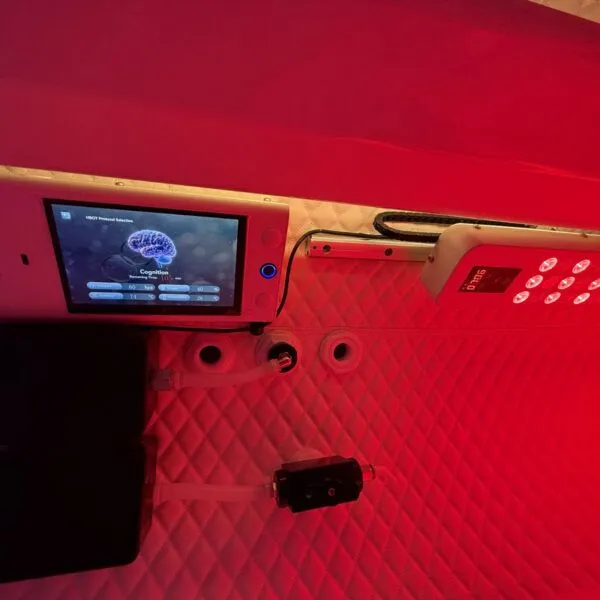

Touchscreen with pre-built protocols
HQO2 Protocol Technology™ runs pre-built protocols from the chamber's touchscreen, from inside the cabin. Custom protocols are available as an upgrade.
Upgrade
BIBS · Advanced Oxygen
Demand-valve mask delivery at 95–98% oxygen efficiency. Sealed mask, exhalation routed outside the chamber.
Specifications
The numbers.
- Type
- Monoplace hard-shell · lay-down
- Pressure
- 1.3 – 2.0 ATA
- Capacity
- 1 person
- Oxygen system
- Continuous flow · 93–96% standard · BIBS Advanced Oxygen 95–98% available as upgrade
- Footprint
- 0.90 × 2.20 m
- Dimensions
- 900 × 2200 mm cabin (D × L) · 304 stainless steel · 10mm polycarbonate door
- Warranty
- 2 years, parts & labour
Full technical specifications, weight, material, noise level, concentrator flow, available on request.
Who this is for
- The longer-session protocol user. 75–90 minute dwells, audio or sleep through sessions. Lay-down format earns its keep when session length matters.
- The restoration-led buyer. Recovery and sleep are the headline outcomes. The horizontal posture matches the use case.
- The lay-down user who wants a view. Wants to see the room through the session, not stare at a ceiling — two large cabin windows give session-long external sightline.
Quality assured
Certifications & standards.
Built to international manufacturing standards: trust, safety, quality and reliability.
Built to ASME code
Boiler & Pressure Vessel Code
A chamber is a pressure vessel with a person inside it. The reference standard for that is the ASME Boiler and Pressure Vessel Code, and the vessel is engineered to it.
ISO-certified facility
9001 · 14001 · 13485
Quality management (9001), environmental management (14001), and 13485, the medical-device quality standard. Independently audited.
CE Marked
European Conformity
Compliance with European health, safety and environmental-protection standards.
The chamber, drawn
Altura One, inside and out.
The shell, the cabin and the bed, drawn from the chamber itself. Every dimension is from the spec sheet.
900 mm (cabin) 900 mm
900 mm (cabin) 2200 mm - Chamber
- Hard-shell · lay-down · one person
- Pressure
- 1.3–2.0 ATA
- Oxygen
- Continuous flow, 93–96% purity BIBS mask, 95–98% (upgrade)
- Cabin, L × W × H
- 2200 × 900 × 900 mm
- Weight
- 180 kg
- Controls
- HQO2 Protocol Technology™
- Noise
- Up to 62 dB
- Power
- Standard 10A power points BIBS: O₂ unit on 15A
- Warranty
- 2 years, parts & labour
Hardware from AUD 99,900 — delivered & installed.
Make it yours
Design your Altura One.
Start with the build. Choose your oxygen, leather and finish, then send the build with your quote request. We confirm upgrade pricing in your custom quote.
Exterior · Side · End · Controls
Your Altura One
Starting build
- Oxygen
- Standard Oxygen
- Protocols
- Pre-built protocols
- Interior leather
- Glacier leather
- Exterior
- White
- Cabin extras
- None
Hardware from AUD 99,900 — delivered & installed.
Upgrades are confirmed in your quote. We check your space and delivery on the call, then send final pricing.
Will it fit
Plan the room.
Altura One, its oxygen & pressure unit and its air conditioner, drawn to scale. Measure your room against it, then send us the numbers.
Plan view · to scale 3D view · heights to scale
- Chamber · 2200 × 900 mm
- Oxygen & pressure unit · 420 × 760 mm
- Air conditioner · 410 × 320 mm
- 1.0 m clear in front of the door
- Example room 4.2 × 3.0 m · 1 m grid
- Chamber · 900 mm (cabin)
- Oxygen & pressure unit · 725 mm tall
- Air conditioner · 570 mm tall
Example layout, shown with Standard Oxygen. We confirm your room on the call.
- ≈ 7 m²
- Floor area to allow
- 1.0 m
- Clear in front of the door
- 180 kg
- Chamber, the heaviest unit
- Path in
- Delivered as one piece. The cabin is 900 mm wide and 2,200 mm long, so we confirm the route in before install.
- Power
- Standard 10A power points near the chamber. With Advanced Oxygen, the oxygen unit needs a 15A circuit, arranged by your electrician.
- In the box
- The chamber, the oxygen & pressure unit (concentrator and compressor, 68 kg) and the air conditioner unit (36.4 kg). Delivery, installation and operator training are included.
- Air
- Allow a 200 mm gap around the oxygen & pressure unit and the air conditioner for airflow.
Technical details
Operating & electrical specifications.
Everything Altura One needs on-site: components, power and cabin features. Share this section with your electrician or installer ahead of delivery.
Operating Components
Oxygen & Pressure Unit
- Contains
- Concentrator and compressor
- Dimensions
- 760 × 420 × 725 mm
- Net Weight
- 68 kg
- Oxygen Flow
- 10 L/min
- Oxygen Purity
- 93–96% standard · 95–98% with BIBS upgrade
- Power
- 220–240V / 1,200W (or 110V / 1,400W)
Air Conditioner
- Dimensions
- 410 × 320 × 570 mm
- Weight
- 36.4 kg
- Supplied
- With the chamber, as its own unit
Chamber & Electrical
Chamber Cabin
- External Dimensions
- 900 × 2,200 mm (D × L)
- Cabin Door
- 560 × 755 mm · 10mm polycarbonate
- Cabin Material
- 304 stainless steel · 2.5mm
- Net Weight
- 180 kg
- Operating Pressure
- 1.3 – 2.0 ATA (up to 100 kPa)
- Pressurised Flow Rate
- 72 L/min
- Boosting Time
- 17 minutes
- Pressure Relief
- 100 seconds (max rate)
- Noise
- ≤ 62 dB
Electrical Requirements
- Voltage
- 220–240V (AU standard)
- Total System Power
- 2,300–2,500W (cabin) + 1,200W (oxygen & pressure unit)
- Outlets
- Standard AU 10A power points (BIBS oxygen unit on a 15A circuit)
Cabin Features
Interior
- Finish
- Leather in six included colours: Glacier (standard), Oat, Graphite, Ember, Azure, Onyx
- Exterior Colour
- White or Black · premium paint in Blue or Matte black (upgrade)
- Lighting
- Ambient cabin LED
- Climate
- Cabin air conditioner (its own unit, included)
- Communication
- 2-way intercom + headset
- Controls
- Internal touchscreen control panel
Exterior
- Controls
- External barometer + control panel
- Communication
- 2-way intercom
- Safety
- Automatic + emergency pressure relief valves
Power
Altura One runs on standard 10A power points near the chamber. With Advanced Oxygen, the oxygen unit needs a 15A circuit, which your electrician arranges; we coordinate with them ahead of install. No structural work required.
Lead Time
12 weeks ex-factory + 3 weeks shipping (~15 weeks total to install). Confirmed in your custom quote.
